YoWoo Power T Parallel Charging Board for 2S-6S Lipo Batteries – Balance Charging Plate with 80A Copper Foil
YoWoo Power T Parallel Charging Board for 2S-6S Lipo Batteries – Balance Charging Plate with 80A Copper Foil
The YoWoo Power T Parallel Charging Board allows you to charge and balance up to six 2S to 6S Lipo batteries (also compatible with LiFe and Li-ion) at the same time. It uses T-plug male connectors and JST-XH balance ports, with 2oz thick copper foil rated for 80A continuous current. This board is designed for use with balance chargers like Imax B6, B6AC, or UN-A6, and is ideal for RC enthusiasts with multiple batteries.
Which batteries work with this charging board?
This board handles 2S, 3S, 4S, 5S, and 6S rechargeable batteries in LiPo, LiFe, and Li-ion chemistries. You can charge up to six packs simultaneously, provided they are at the same discharge state and cell count. The balance connectors are JST-XH types, and the main power connectors are T-plug male.
What safety features does it offer?
The balance charging board monitors each cell individually to prevent overcharge. It includes short circuit protection. The thick copper foil construction helps handle high current without overheating.
How to set up the parallel charging board

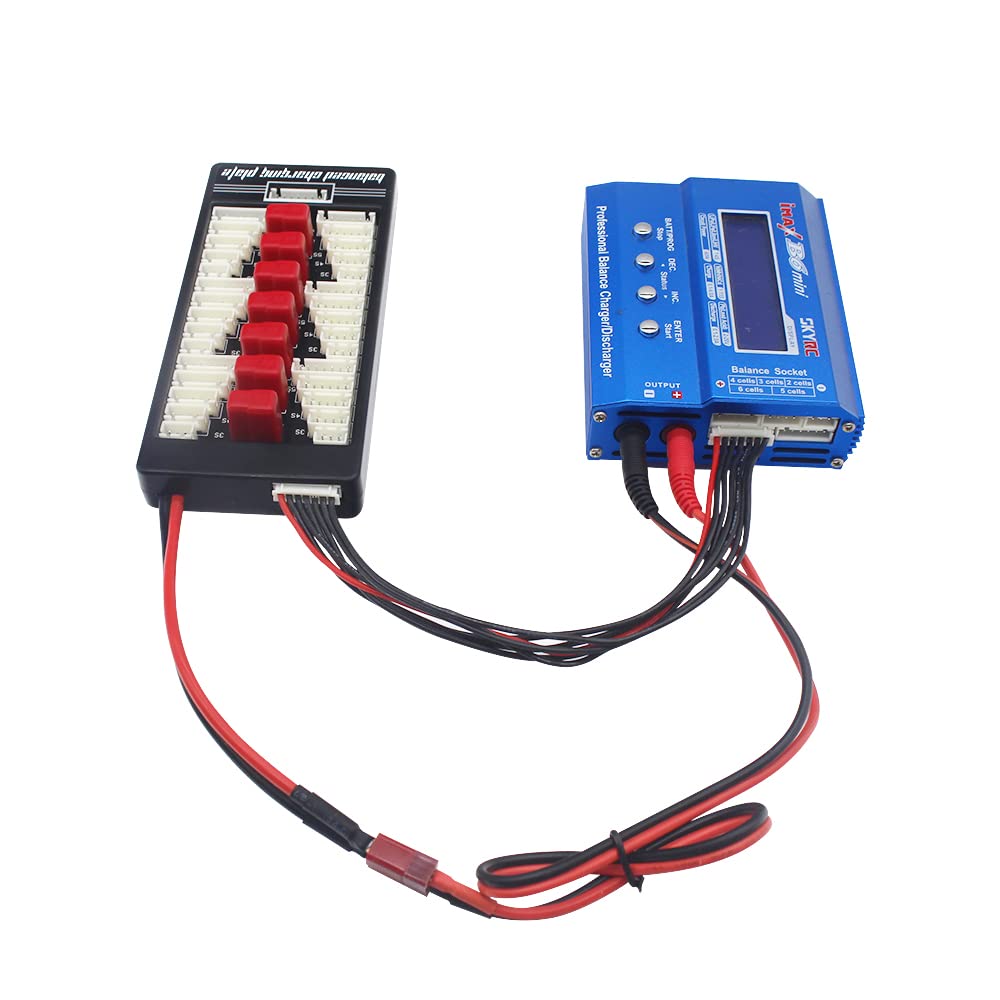

Step 1: Connect to charger
Plug one end of the included balance cable into the balance port of your charger and the other into the board's balance port. Then connect the board's power port to the charger's output using the provided cable.
Step 2: Connect batteries
Attach each battery's balance lead to the board's balance ports first, then connect the battery's main T-plug to the board. This order reduces spark risk. Always use batteries with similar voltage and capacity.
Technical specifications
| Supported cell count | 2S to 6S |
| Voltage range | 0–22.2V DC |
| Maximum continuous current | 40A (board rating); copper foil rated for 80A |
| Connector type | T-plug male (7 ports) + JST-XH balance |
| Copper foil thickness | 2oz |
| Brand | YoWoo Power |
| Color | Black, Red, White |

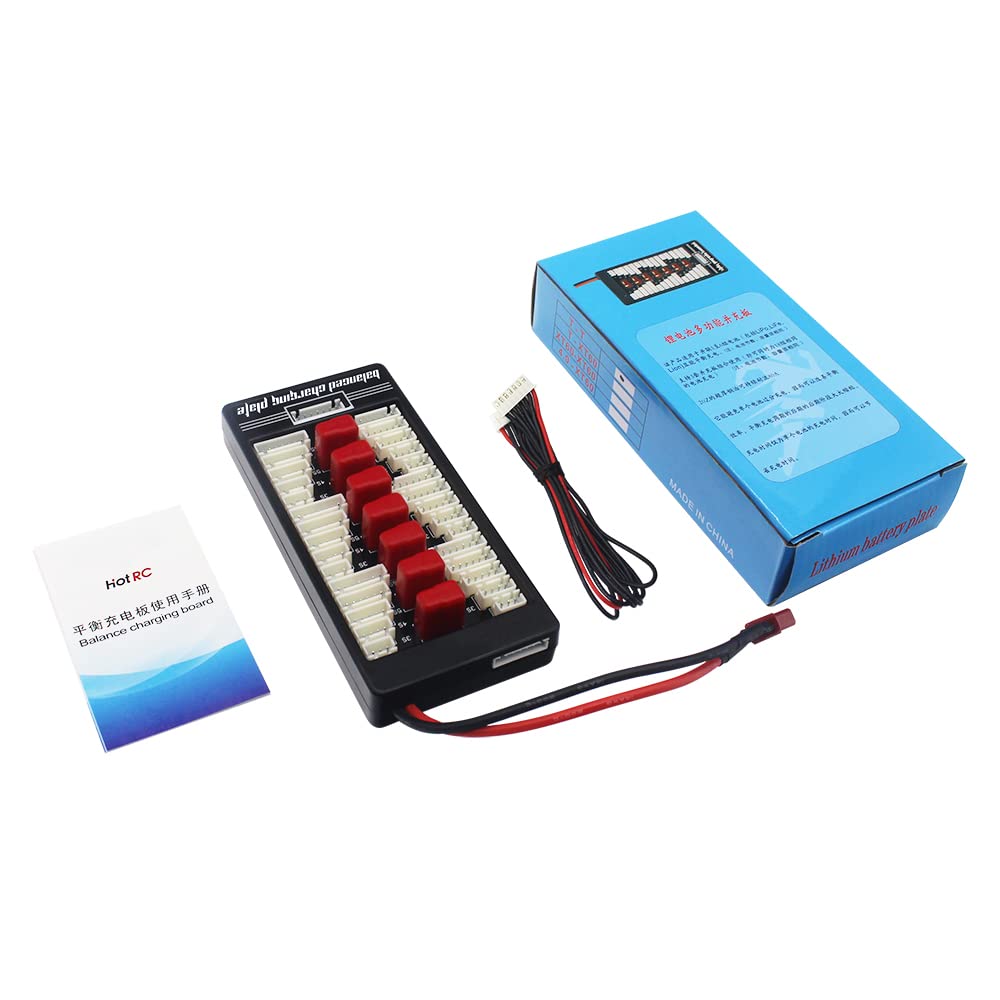

What is included in the package?

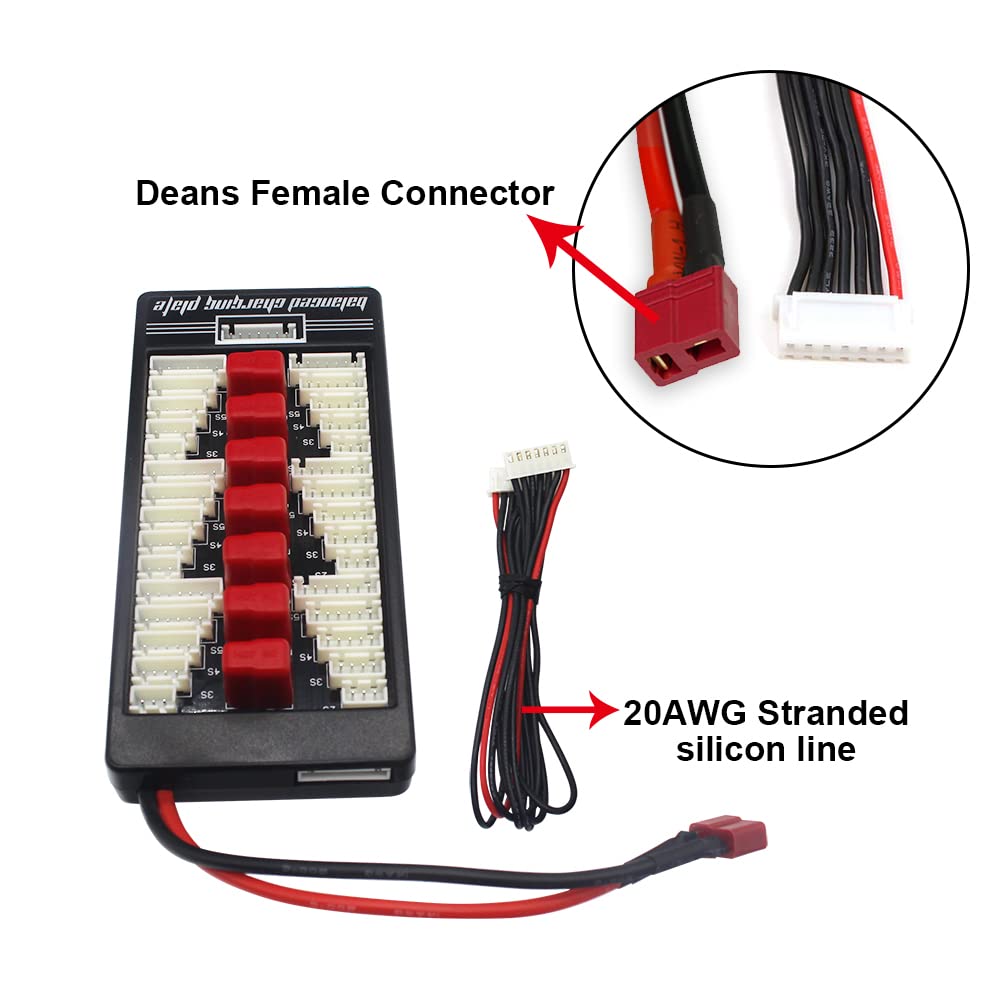

- 1 x 2-6S Parallel Charging Board (with 7 T-plug male connectors)
- 1 x Connect Cable
- 1 x User Manual
Frequently asked questions
Can I charge different battery types at the same time?
The board supports LiPo, LiFe, and Li-ion, but all batteries connected must have the same chemistry and cell count to balance correctly.
What is the maximum number of batteries I can charge?
You can charge up to six batteries simultaneously, as long as they share the same cell count and discharge state.
Is this board compatible with my Imax B6 charger?
Yes, it is designed to work with balance chargers such as Imax B6, B6AC, and UN-A6.
Does the board protect against overcurrent?
The board's copper foil can handle up to 80A, but the board's current rating is 40A; ensure your charger does not exceed that.
