Surpass Hobby 40mm RC Cooling Fan - 16000 RPM High Speed Motor Fan for 1/8 1/10 RC Cars Trucks Truggies (Without Heatsink)
Surpass Hobby 40mm RC Cooling Fan - 16000 RPM High Speed Motor Fan for 1/8 1/10 RC Cars Trucks Truggies (Without Heatsink)

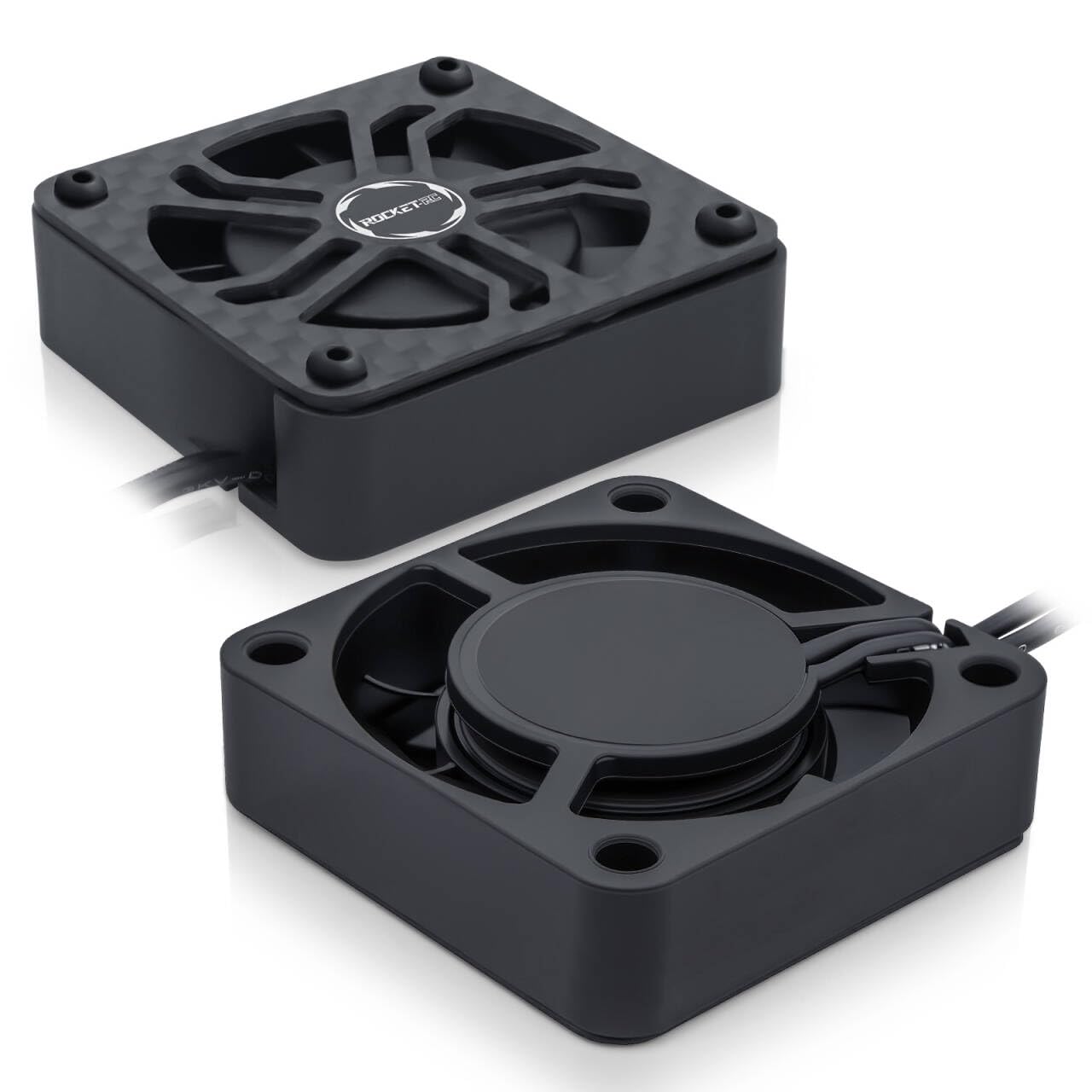

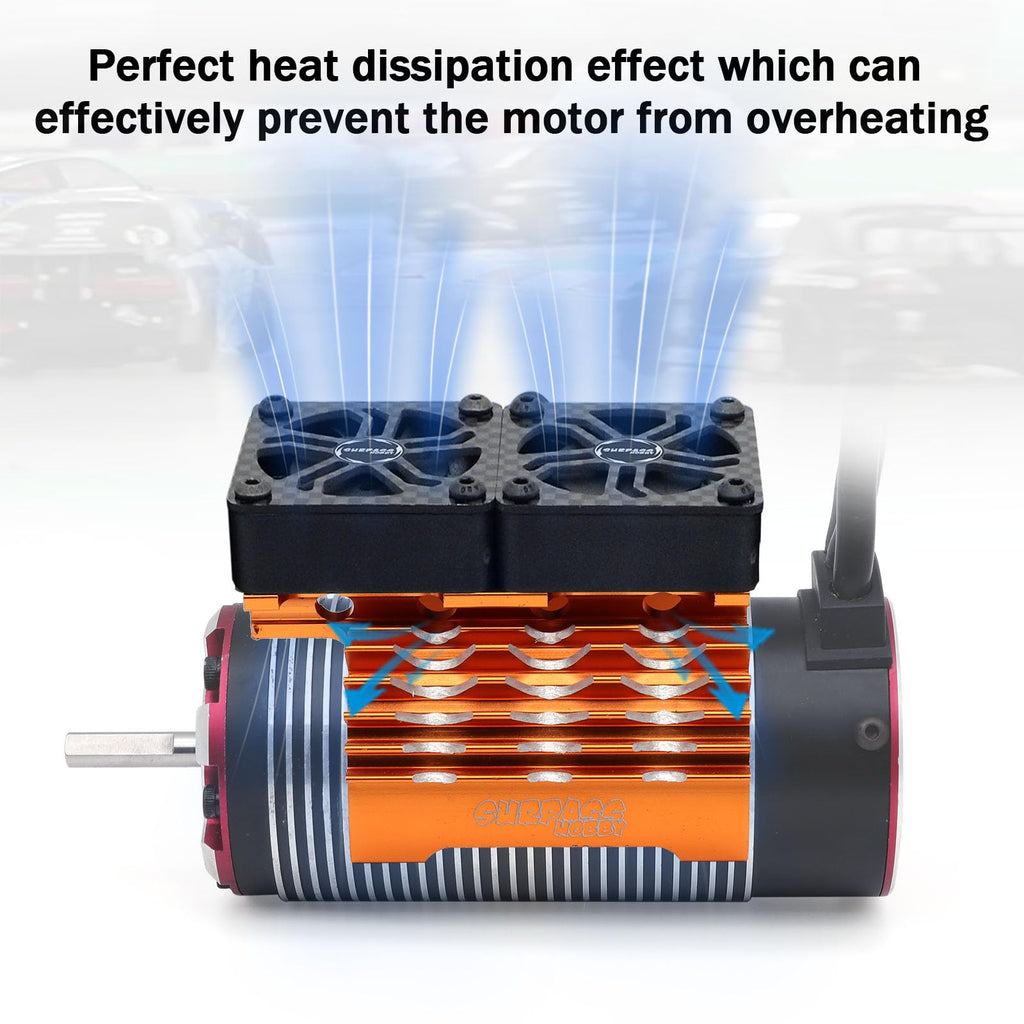

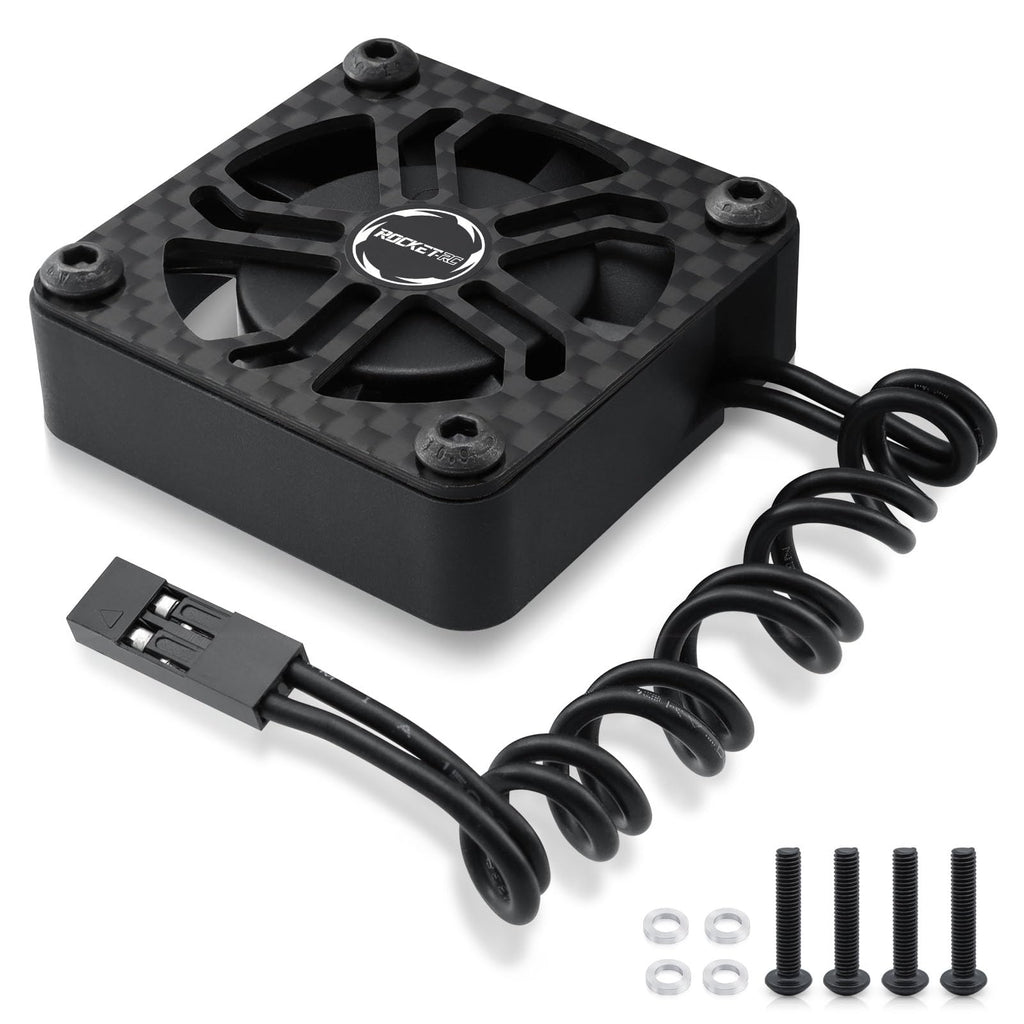

This 40mm cooling fan from Surpass Hobby is built for 1/8 and 1/10 scale RC vehicles equipped with 4068-4082 brushless motors. It spins at up to 16000 RPM to help pull heat away from the motor, using forced air cooling. The fan works with brackets that have Φ3.2mm mounting holes and includes a reverse polarity protected plug to prevent damage from incorrect wiring. It runs on 5 to 8.4V and can be powered directly from the receiver.
How Fast Does This Fan Spin and What Voltage Does It Need?
The fan reaches a maximum rotational speed of 16000 RPM. It operates on a voltage range of 5 to 8.4V, making it compatible with standard receiver outputs on most RC models. The 18cm (7.09 inch) cable gives you flexibility in placement.
What Motors and Vehicles Does It Fit?
This fan is designed for 40mm diameter motors, specifically brushless motors in the 4068, 4074, and 4082 sizes. It's intended for 1/8 and 1/10 scale RC cars, trucks, and truggies. The fan itself is 40 x 10 x 10mm (1.5 x 0.39 x 0.39 inches) and weighs only 15g (0.53oz), so it won't add much weight. Note: This is a fan only – it does not include a motor heatsink.
What's in the Box and How Do You Install It?

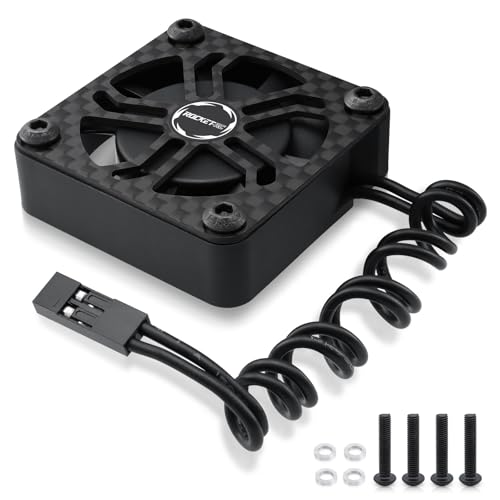

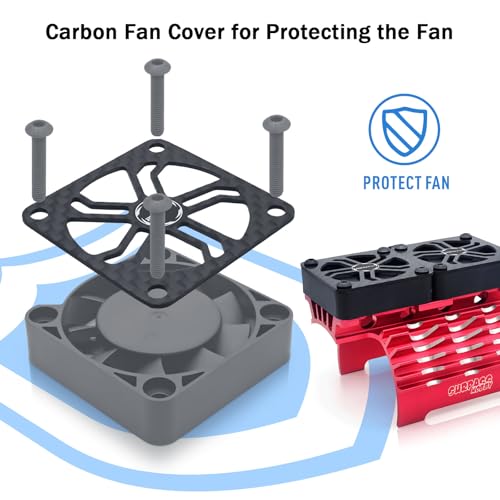

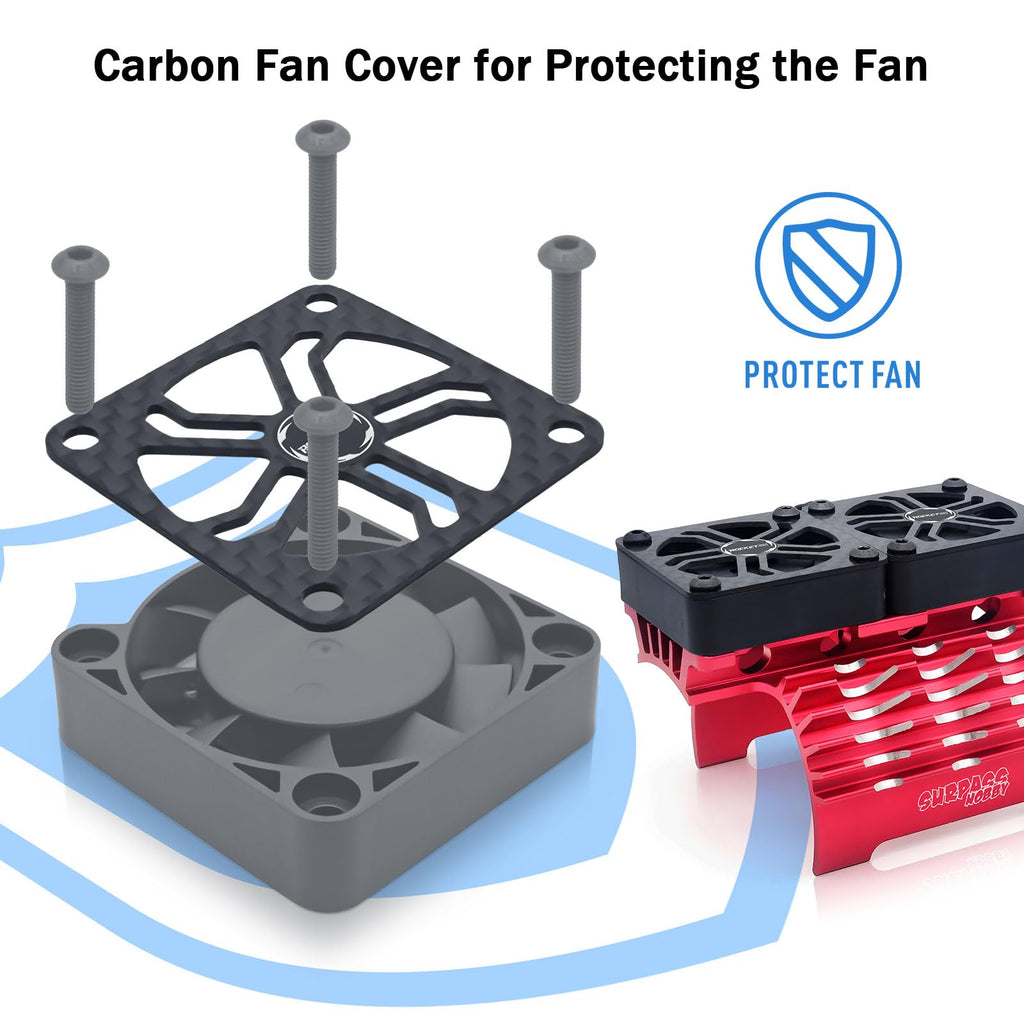

You get one 40mm motor cooling fan and four screws. Installation is straightforward: mount the fan using brackets with Φ3.2mm holes (not included). The plug is keyed for reverse polarity protection, so you don't have to worry about connecting it backwards. The fan is also compatible with carbon fan covers for added protection.

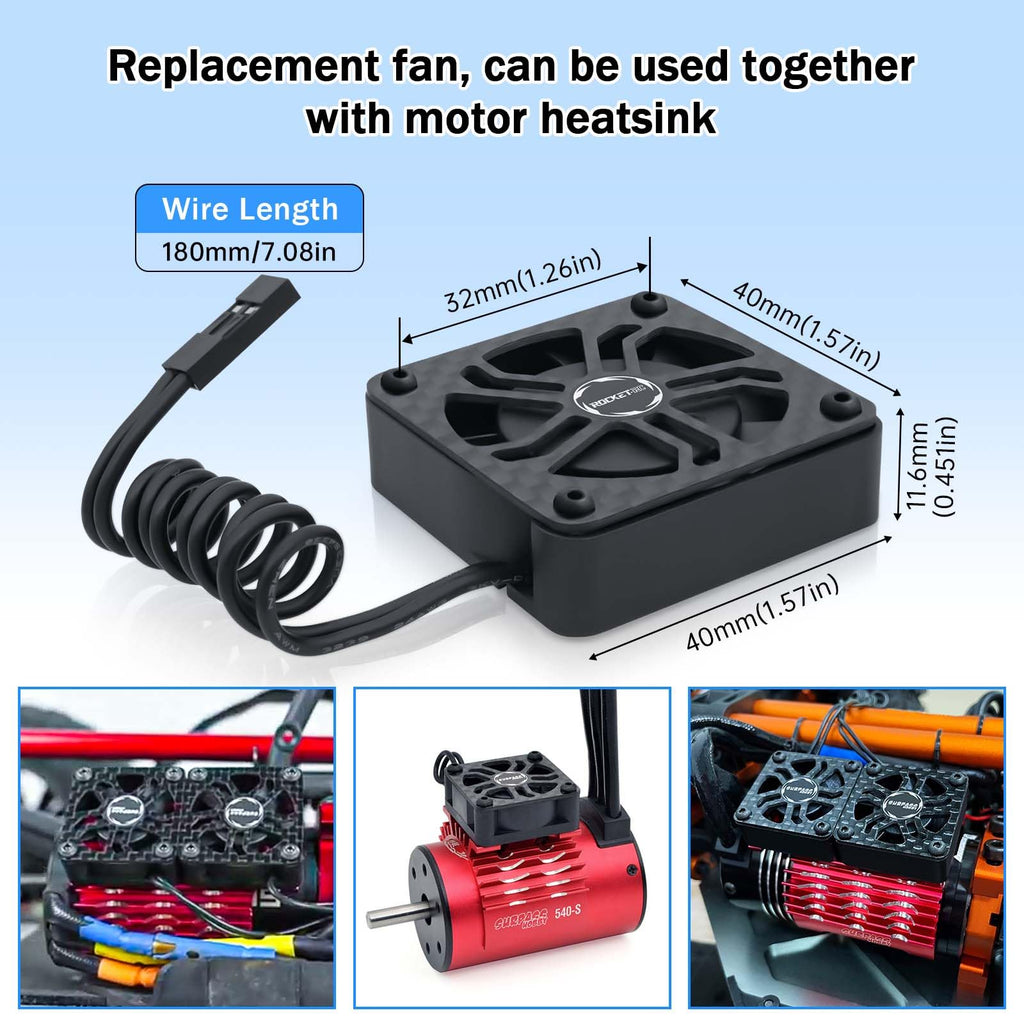

Size, Weight, and Fit Details
| Fan Size | 40 x 10 x 10mm (1.5 x 1.5 x 0.39 inches) |
| Weight | 15g (0.53oz) |
| Max RPM | 16000 |
| Voltage Range | 5-8.4V |
| Cable Length | 18cm (7.09 inches) |

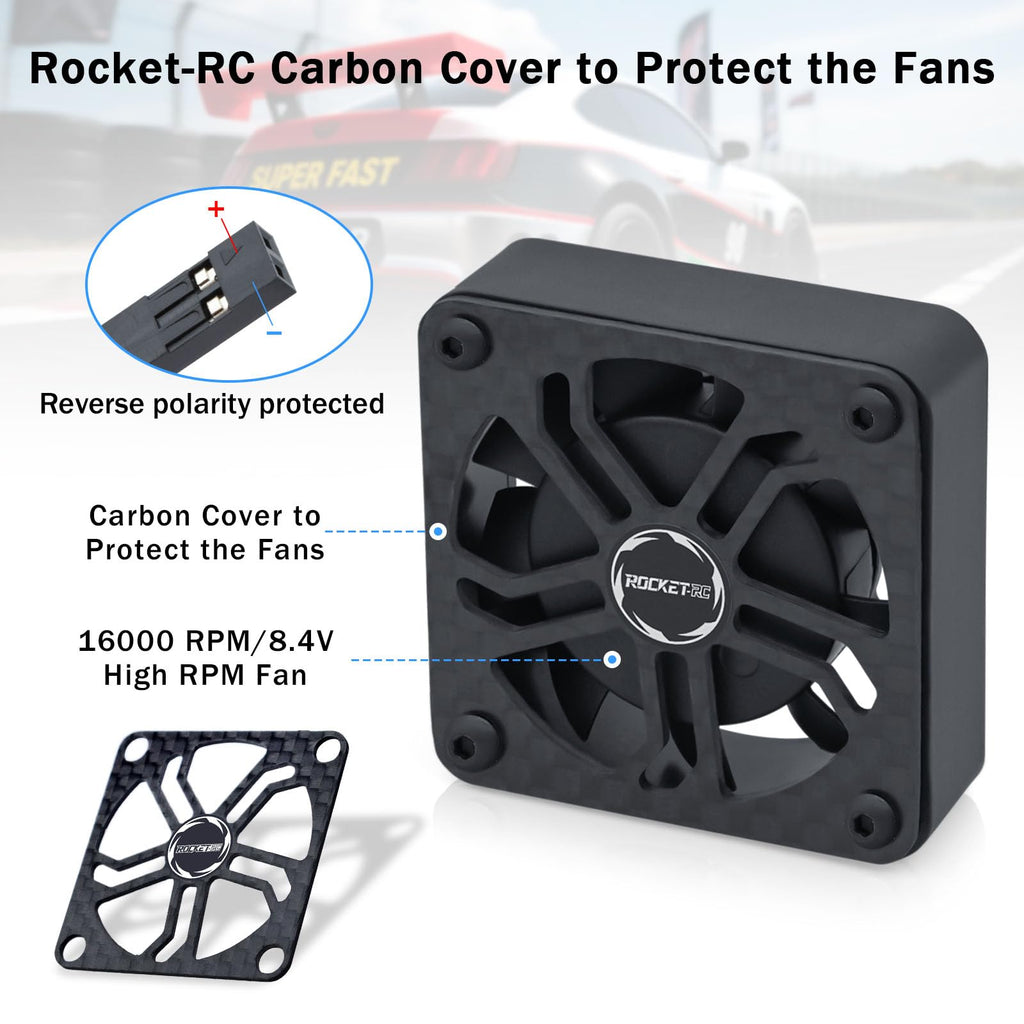

| Connector | 3-Pin, reverse polarity protected |
| Material | Plastic housing |
| Compatible Motor Diameter | 40mm (1.5 inch) |
| Mounting Hole Size | Φ3.2mm |
Frequently Asked Questions
Can I use this fan with any 40mm motor?
It is designed for brushless motors with a diameter of 40mm, particularly the 4068, 4074, and 4082 sizes. It fits 1/8 and 1/10 scale vehicles.
Does this fan come with a heatsink?
No, this is the fan only. A heatsink is not included.
Will the fan work if I plug it in backwards?
The plug has reverse polarity protection, so it won't be damaged by incorrect connection.
What is the fan made of?
The housing is plastic, and the fan blades are also plastic. It is lightweight at 15g.
