LINSYRC 5 Pairs Amass XT-90 XT90H Male and Female Connector Adapters with Plastic Housing for RC LiPo Batteries
LINSYRC 5 Pairs Amass XT-90 XT90H Male and Female Connector Adapters with Plastic Housing for RC LiPo Batteries

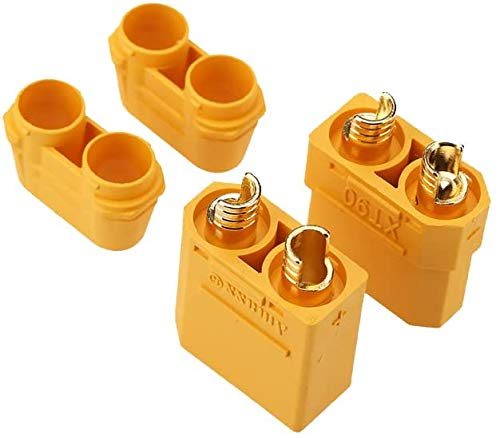

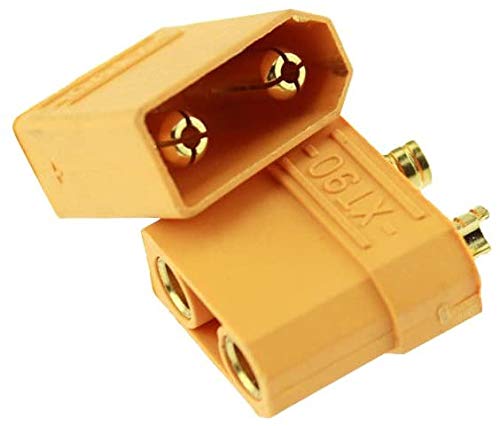

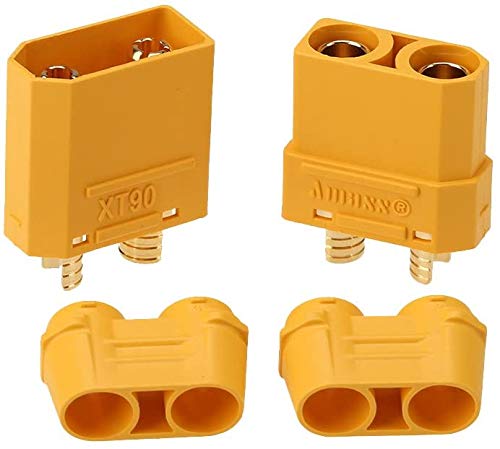

The LINSYRC Amass XT-90 XT90H connector set includes 5 male and 5 female plugs with plastic housings and heat shrink sleeves, designed for high-current RC applications. Each plug uses a 4.5mm banana contact, rated for 90A continuous and 120A peak current. These connectors are compatible with RC LiPo batteries, ESCs, and chargers, commonly used in 250-size helicopters, RC cars, and small boats.
What makes the XT90 connector suitable for high-current RC setups?
The XT90H adopts a 4.5mm banana plug design, an upgrade from earlier versions, providing a larger contact surface that reduces resistance and heat buildup under load. The housing is made from high-temperature nylon, ensuring durability and reliable performance in demanding conditions. Each connector is built to handle continuous currents up to 90A and peaks of 120A, making it a solid choice for applications where standard connectors might fail.

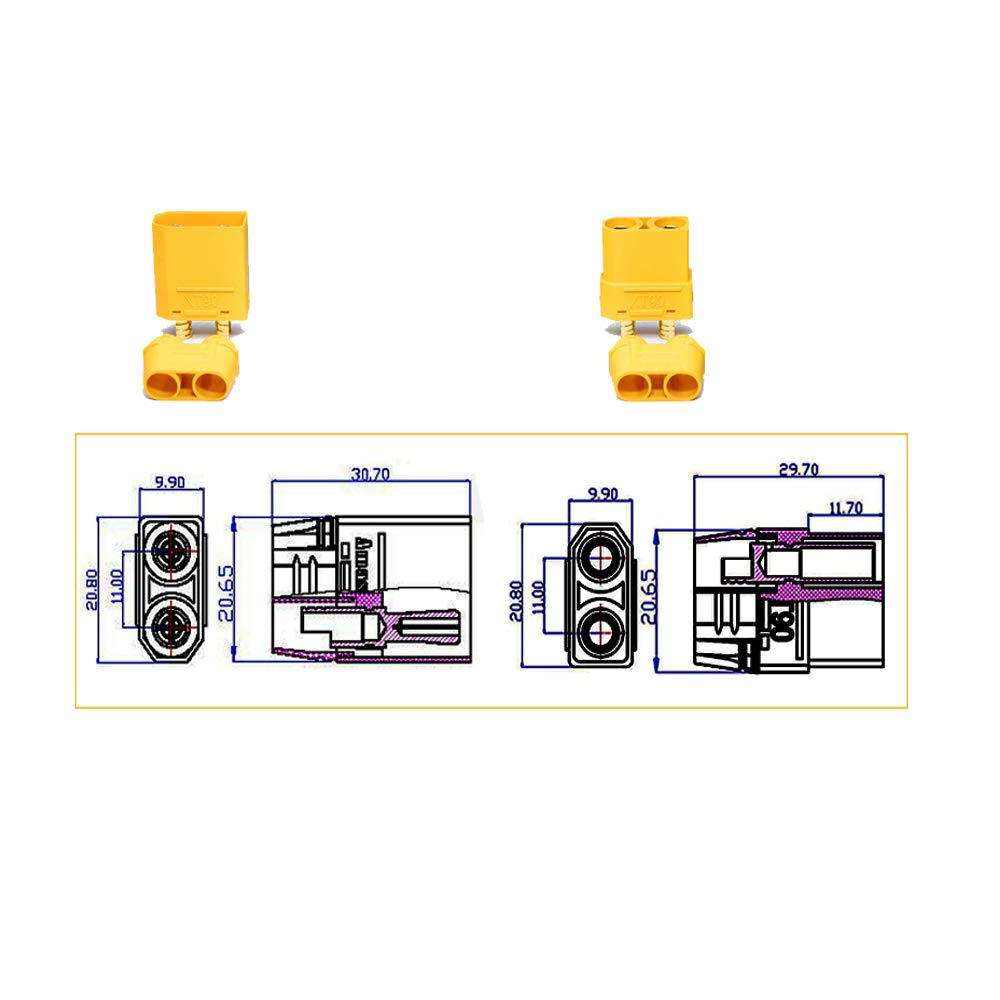

Technical specifications and package details
| Item model number | LSY-041C |
| Package Dimensions | 5.83 x 3.31 x 0.47 inches |
| Item Weight | 2.46 ounces |
| Material | High-temperature nylon |
| Recommended wire gauge | 12 AWG |
| Current rating | 90A continuous / 120A peak |
| Contact type | 4.5mm banana plug (upgraded version) |

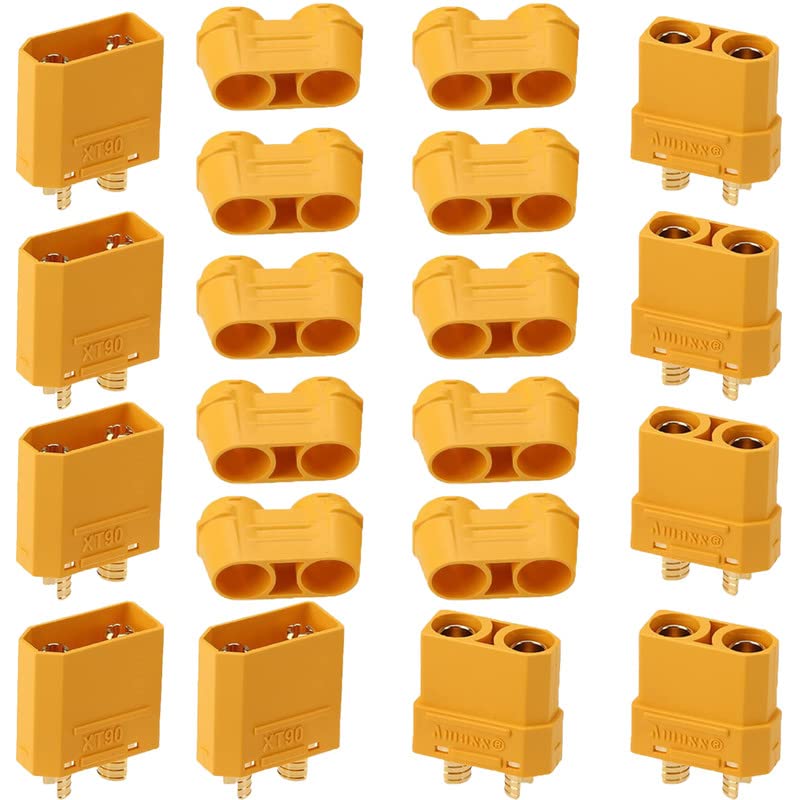

The package includes: 5 male XT-90 connectors, 5 female XT-90 connectors, 10 plastic housings (5 for each gender), and 4 heat shrink sleeves to insulate soldered connections. This set gives you enough parts for multiple builds or replacements.
Compatibility and typical use cases
These connectors are designed for RC LiPo battery motors, ESCs (electronic speed controllers), and chargers. They are commonly used in remote control aircraft, 250-size helicopters, RC cars, small boats, and other hobbyist models that require high-current handling. The XT90H plugs are suitable for any application within the 90-120A current range, providing a secure and low-resistance connection.
Common questions about the XT90 connector
How many connectors are in the package?
The package contains 5 male plugs and 5 female plugs, plus 10 plastic housings and 4 heat shrink sleeves.
What wire gauge should I use with these connectors?
The manufacturer recommends 12 AWG wire for optimal current handling and fit within the connectors.
Is this an upgraded version of the XT90?
Yes, the XT90H is an upgraded design featuring a 4.5mm banana plug for improved conductivity and durability compared to earlier XT90 connectors.
What is the current rating for these connectors?
The connectors are rated for 90A continuous current and 120A peak current, making them suitable for high-demand RC applications.
