AUTOUTLET 10 Pairs XT90 Male Female Bullet Connectors with Heat Shrink for RC LiPo Batteries
AUTOUTLET 10 Pairs XT90 Male Female Bullet Connectors with Heat Shrink for RC LiPo Batteries
The AUTOUTLET 10 Pairs XT90 Male Female Bullet Connectors are designed for high-amp RC applications such as drones, cars, boats, and planes. These connectors feature gold-plated bullets and a high-temperature nylon housing, rated for 60 A continuous current and 100 A peak. Each pack includes 10 male and 10 female connectors along with 20 pieces of heat shrink tubing (10 red, 10 black, 2 cm each). The groove slot design provides a secure, anti-slip, and waterproof connection that is easy to plug and unplug.

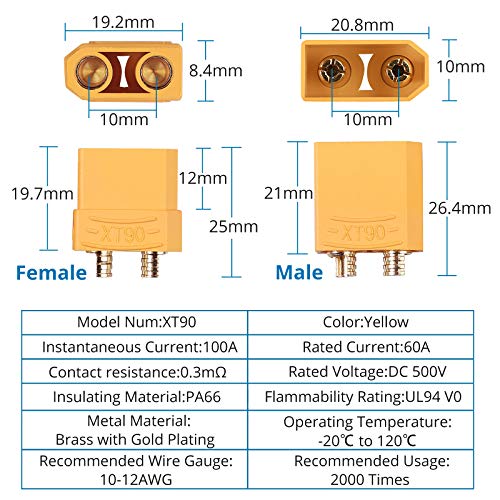

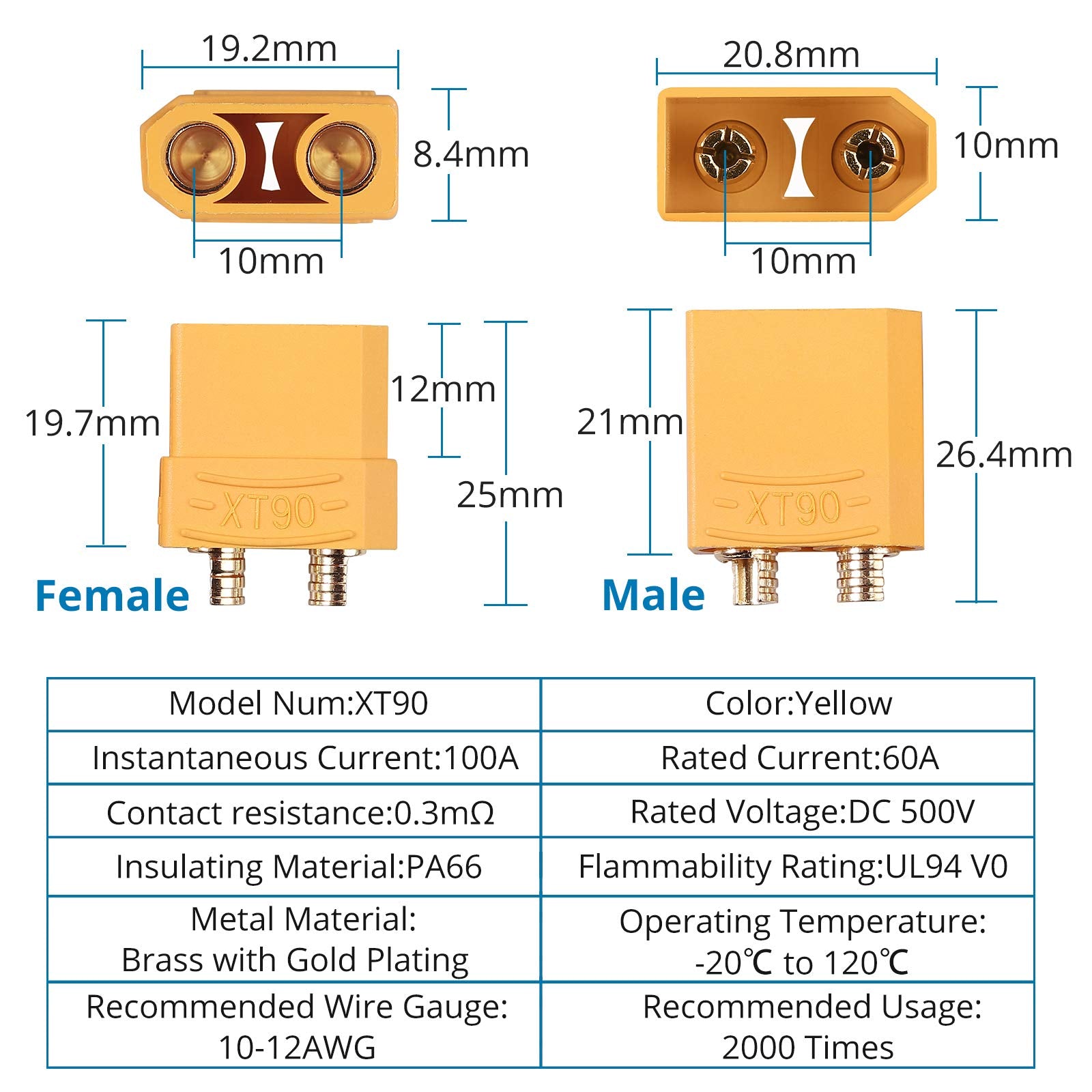

Technical Specifications
| Connector Type | XT90 Male + Female |
| Quantity | 10 Pairs (20 Connectors) |

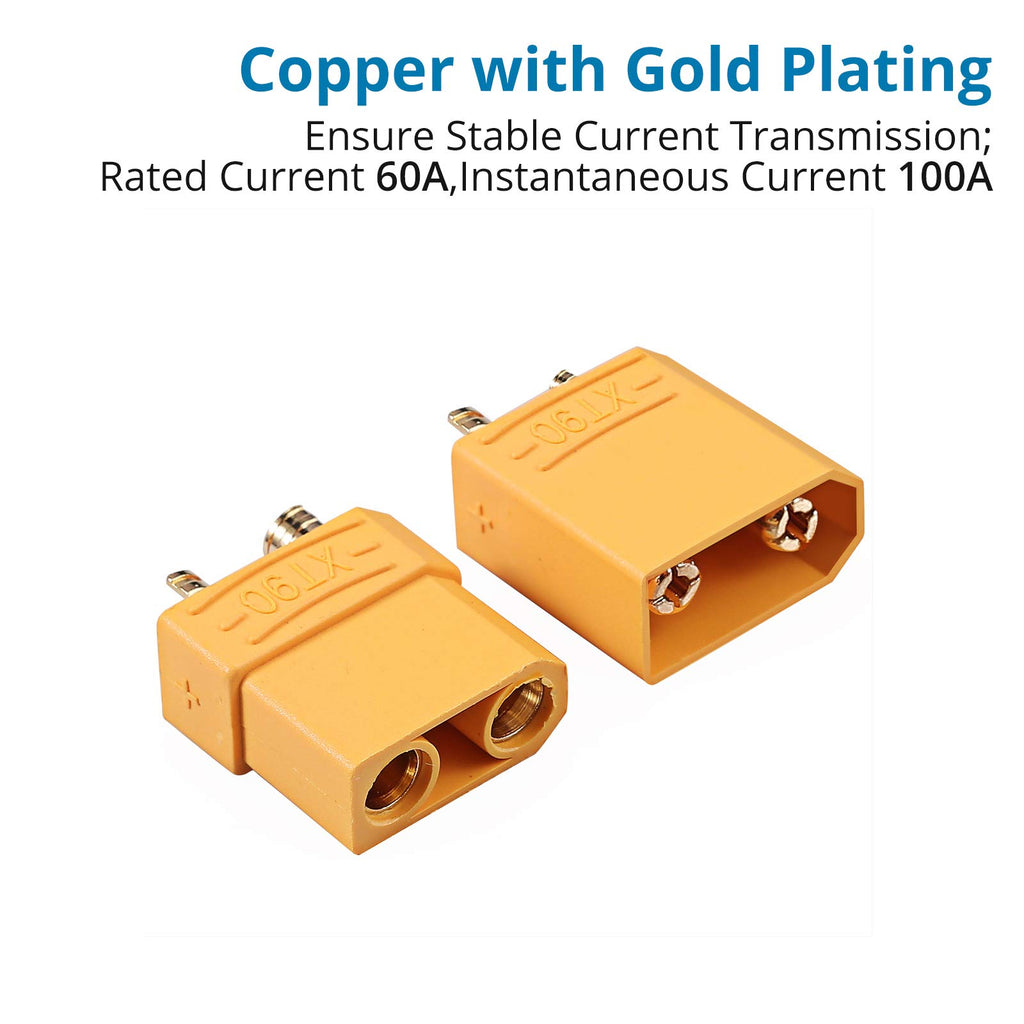

| Current Rating | 60 A Continuous, 100 A Instantaneous |

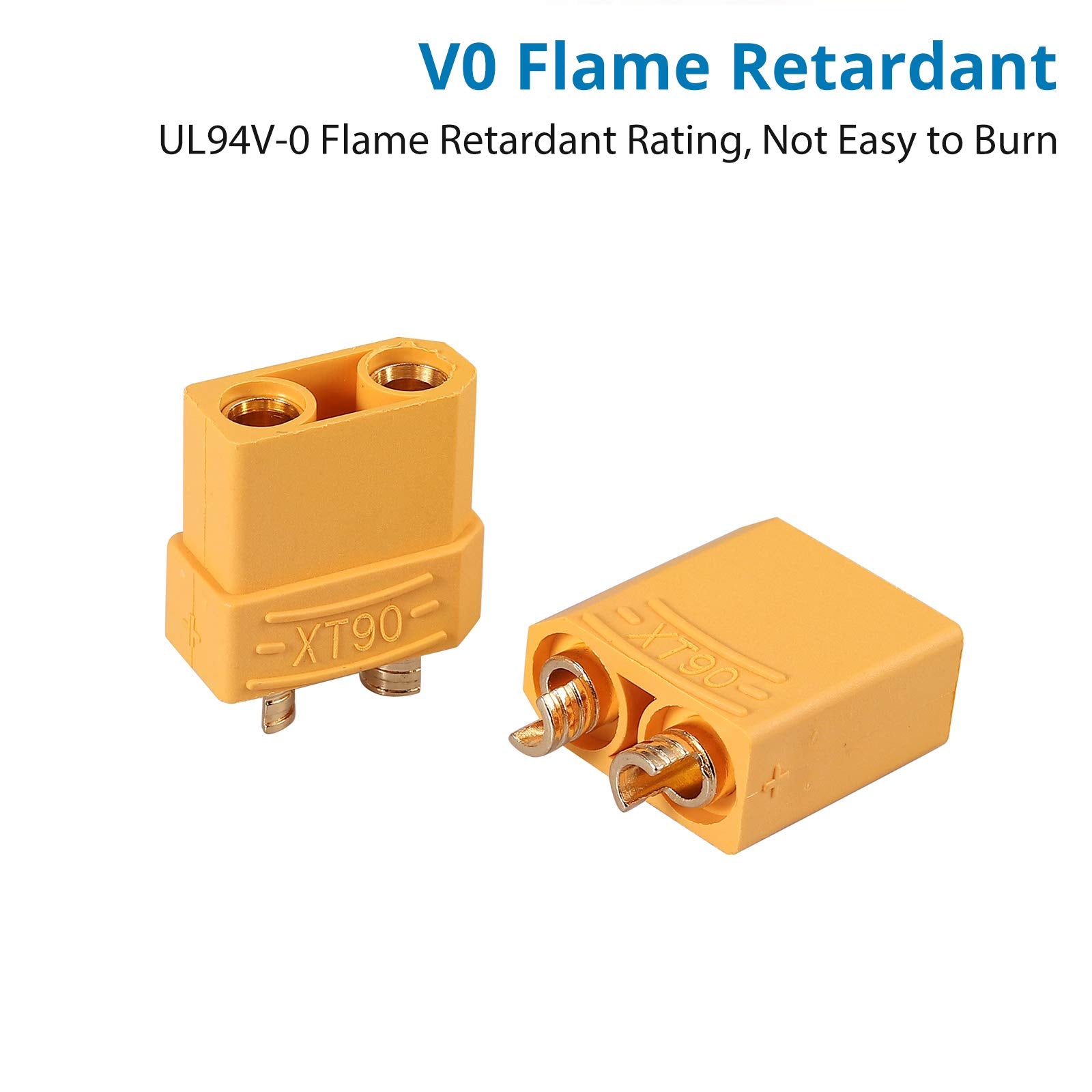

| Material | High-Temperature Nylon, Gold-Plated Bullet Contacts |

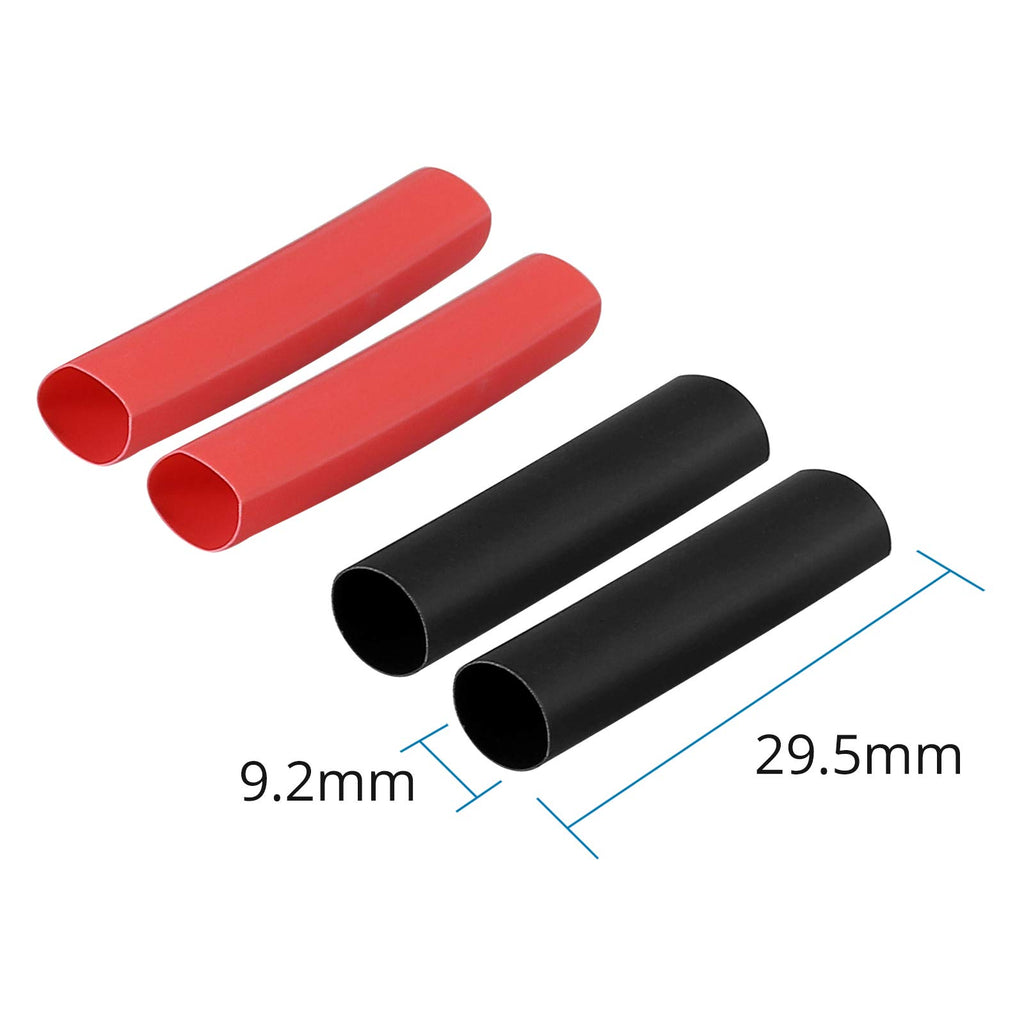

| Heat Shrink Included | 20 Pieces (10 Red + 10 Black, 2 cm each) |
| Design Features | Groove Slot, Anti-Slip, Waterproof, 180° Outward Arrangement |
| Compatible Battery Types | RC LiPo Batteries (e.g., 2000 mAh for drones) |
What distinguishes these XT90 connectors?

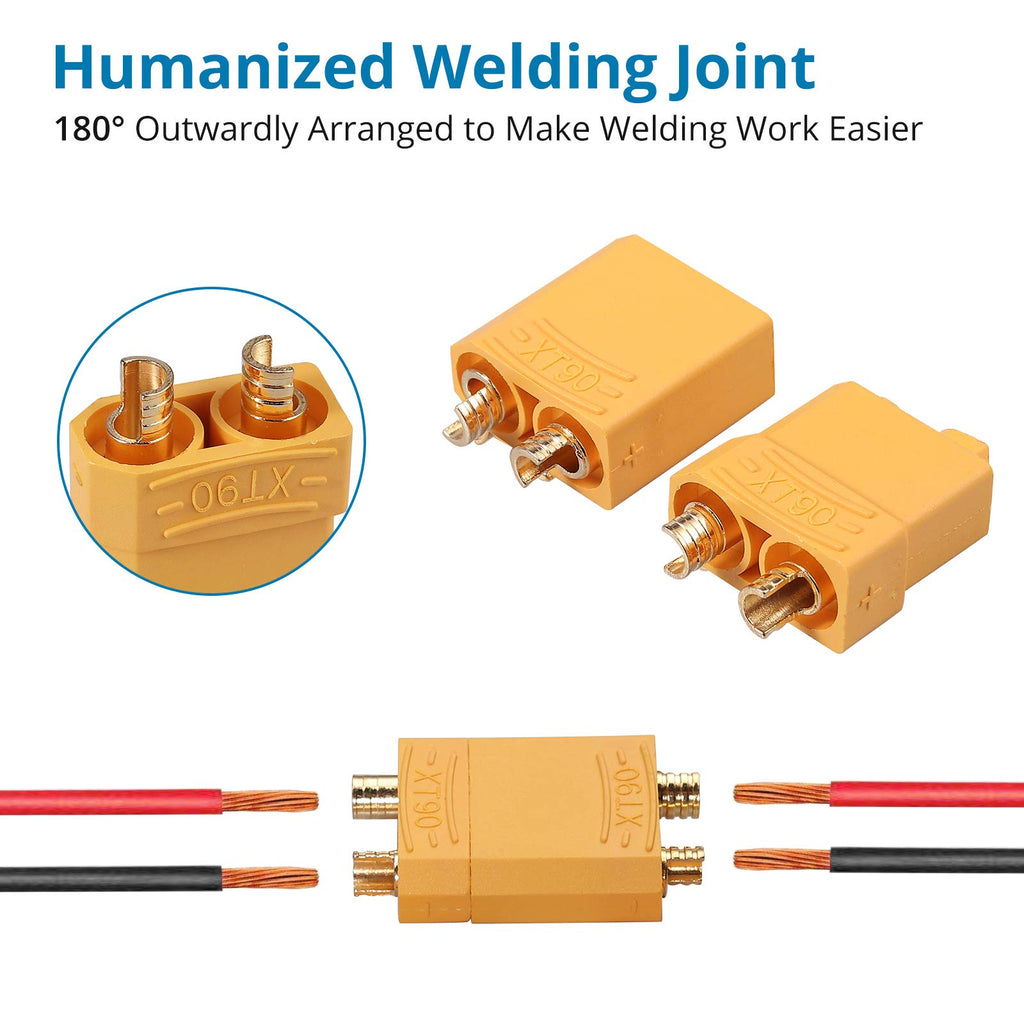

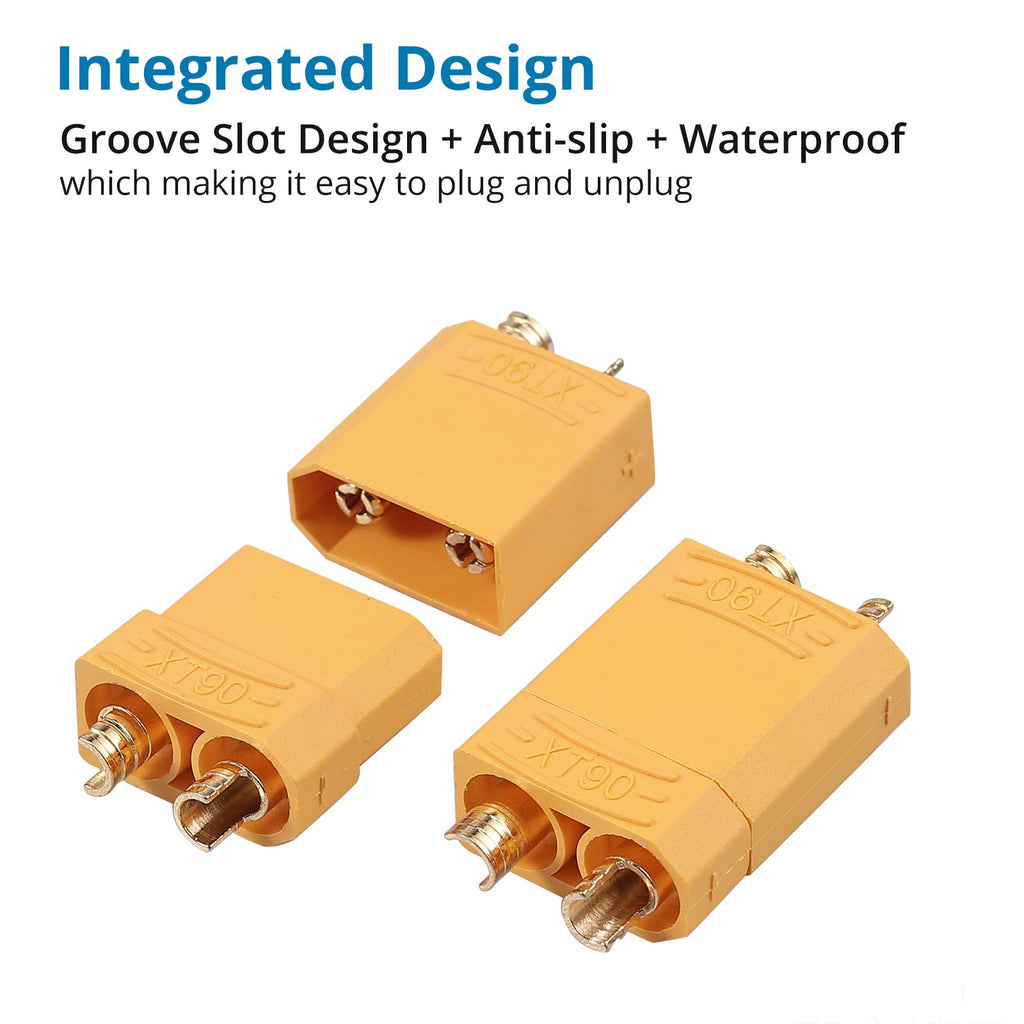

Unlike basic connectors, these XT90 plugs incorporate a groove slot design that improves grip and prevents accidental disconnection. The 180° outward arrangement of the contacts makes soldering easier and helps maintain stable current transmission. The waterproof construction adds durability for outdoor RC use, whether in wet grass or near water.
Are these connectors suitable for your RC project?
If your RC vehicle or drone draws up to 60 A continuously (or up to 100 A in short bursts), these connectors are a solid choice. They work with 2000 mAh LiPo batteries commonly found in drones, as well as larger packs used in RC cars and boats. The included heat shrink tubing lets you insulate solder joints right out of the box.

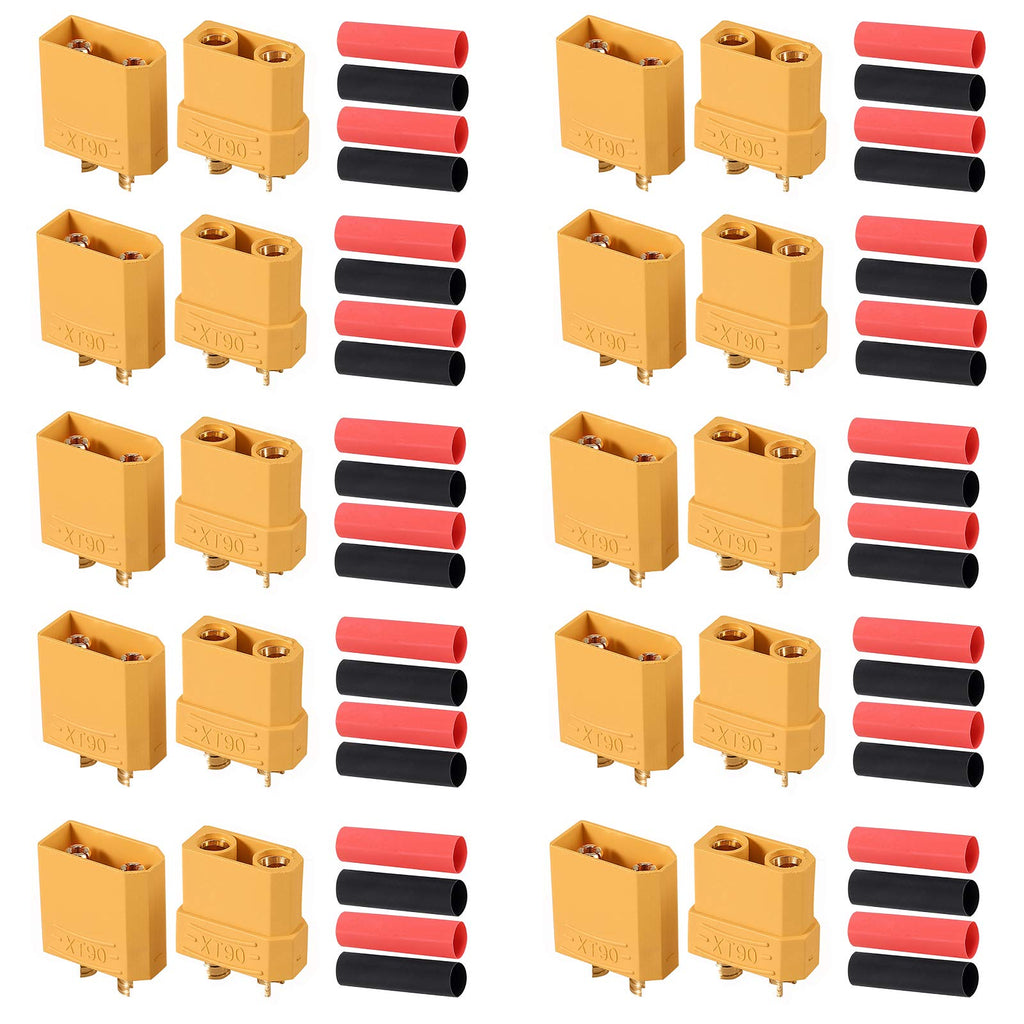

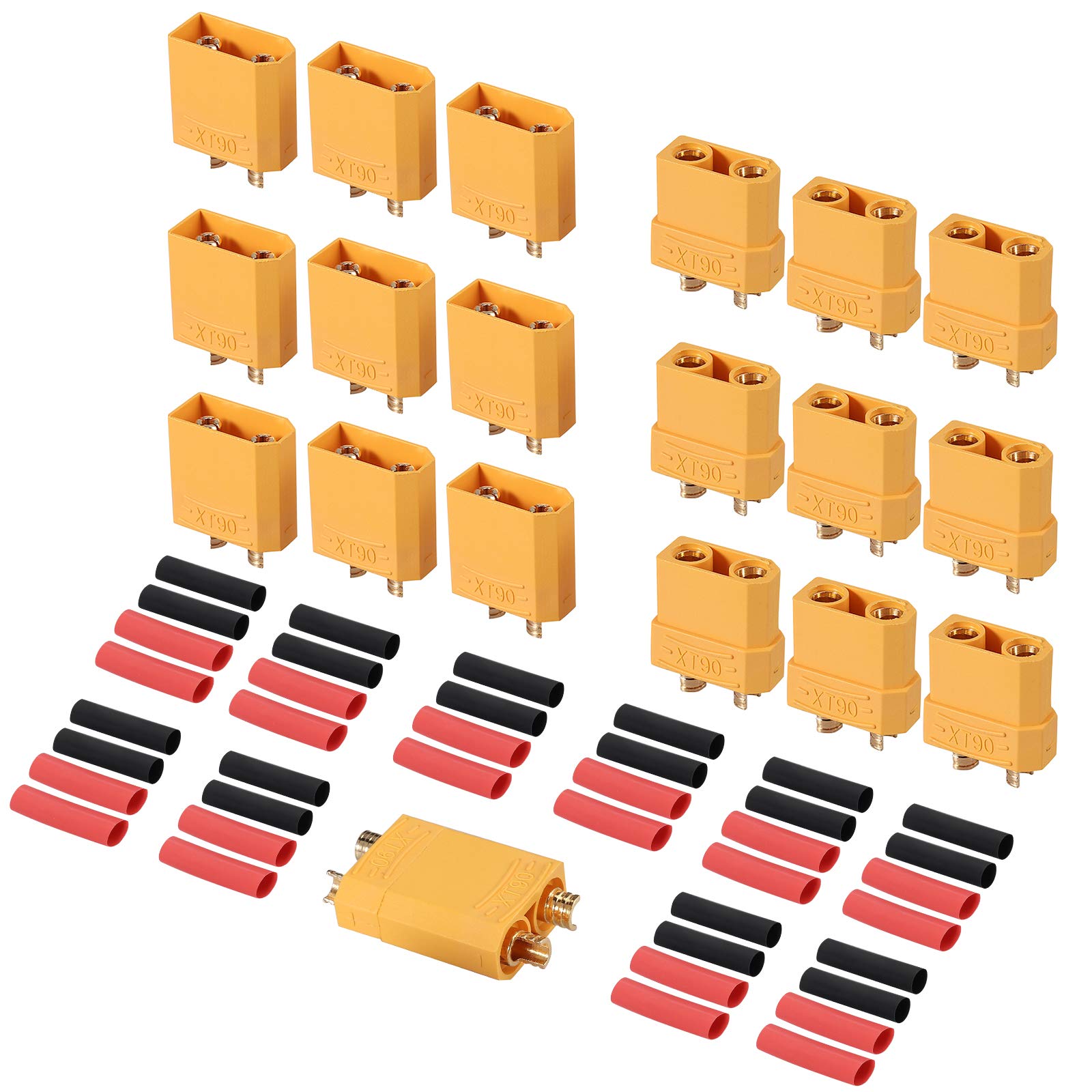

What’s included in the pack?
- 10 XT90 male connectors
- 10 XT90 female connectors

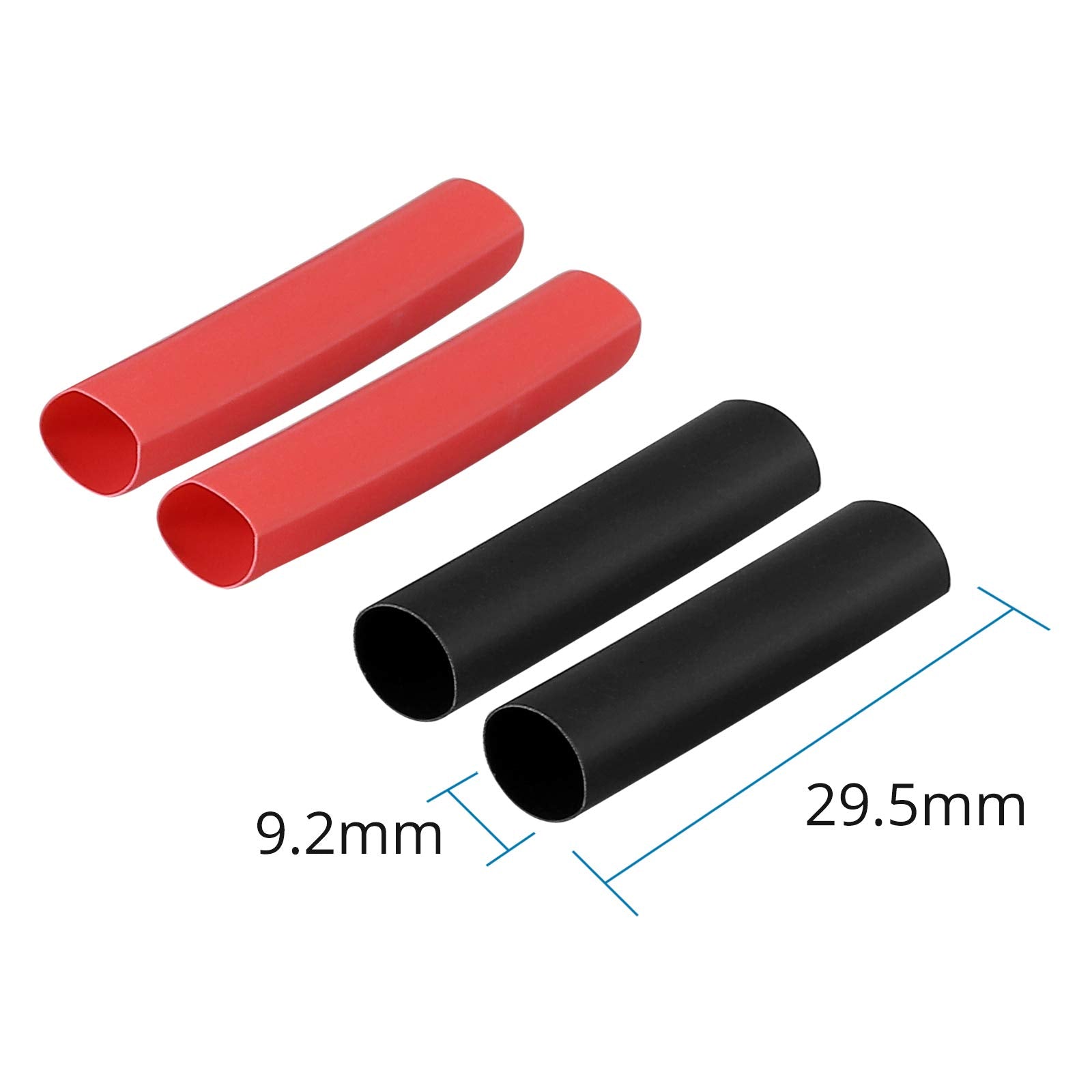

- 10 red heat shrink tubes (2 cm each)
- 10 black heat shrink tubes (2 cm each)
Frequently asked questions
What is the maximum current these connectors can handle?
They are rated for 60 A continuous current and can handle up to 100 A instantaneous surges.
Are the connectors waterproof?
Yes, the groove slot design creates a waterproof seal when plugged in.
Do the connectors come with heat shrink tubing?
Yes, the pack includes 20 pieces of heat shrink (10 red and 10 black) each 2 cm long.
What type of batteries are these connectors designed for?
They are intended for RC LiPo batteries commonly used in drones, cars, boats, and planes.
