Vgoohobby RC Light Bar Roof Lamp Kit 48 LED Double Row for 1/10 Scale Crawler Trucks - L Shape Universal Brackets Included
Vgoohobby RC Light Bar Roof Lamp Kit 48 LED Double Row for 1/10 Scale Crawler Trucks - L Shape Universal Brackets Included

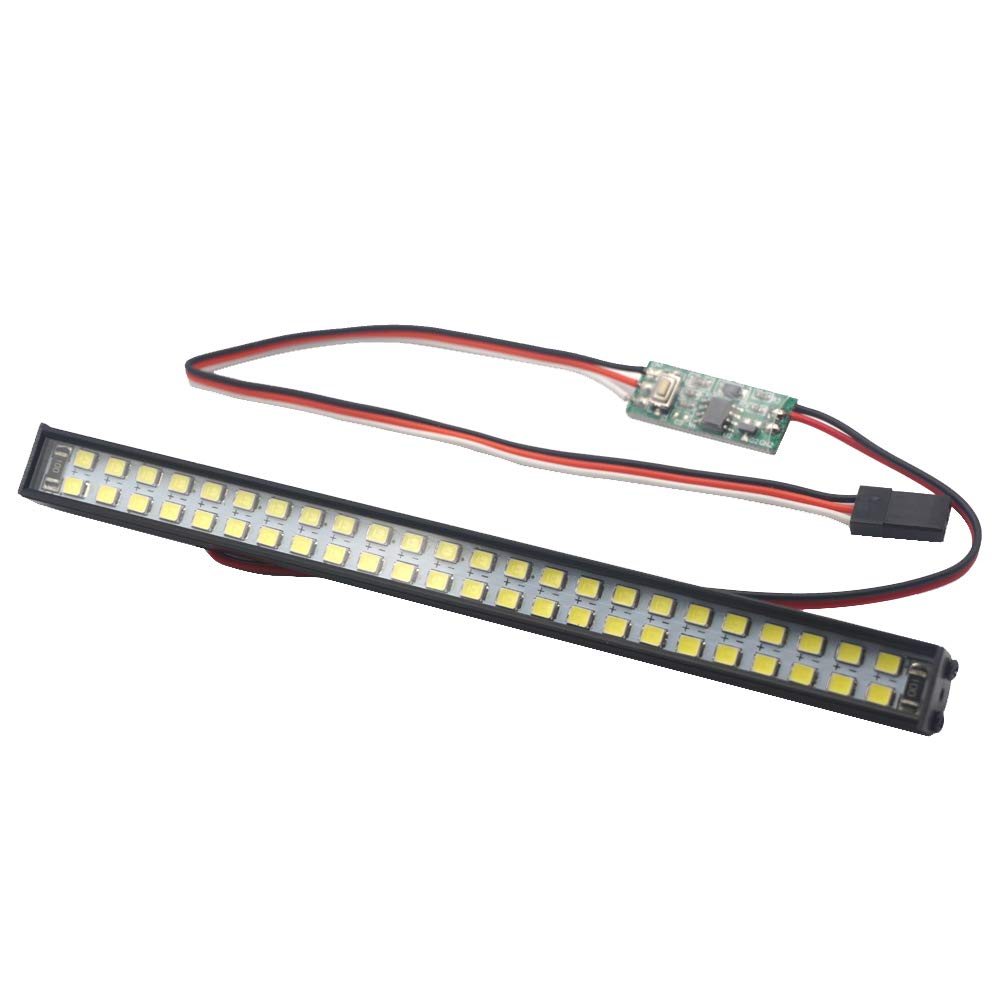

This RC light bar roof lamp kit from Vgoohobby packs 48 bright white LEDs into a metal housing, designed specifically for 1/10 scale crawlers, monster trucks, and short course trucks. It works with popular models like the Traxxas Slash, Rustler, TRX4, Axial SCX10, Tamiya D90, and many others. The bar measures about 145mm (5.7 inches) and operates on 4.8V to 7.2V, drawing power from your receiver, ESC, or a 6V battery pack. The kit includes L-shaped universal brackets and optional Wrangler-style brackets for mounting.
Which RC Vehicles Fit This Light Bar?
This light bar is made for 1/10 scale RC cars and trucks. It fits Traxxas Slash, Rustler, TRX4, Axial SCX10 (various versions), Tamiya D90, HPI, Losi, HSP, Wraith, and Gen8 models. The universal L-shaped brackets let you mount it on most 1/10 scale chassis with a roof or roll bar. If your truck has a standard mounting point, it should work – just check the included hardware first.
Light Output and Power Requirements
| LED Count | 48 (in double rows) |
| Light Color | White |
| Working Voltage | 4.8V – 7.2V (5V-7.4V safe range) |
| Bar Length | 145mm / 5.7 in |
| Cable Length | 400mm / 15.7 in |
| Material | Metal housing |
| Mounting Hardware | L Shape Universal Brackets and Wrangler Brackets (optional) |

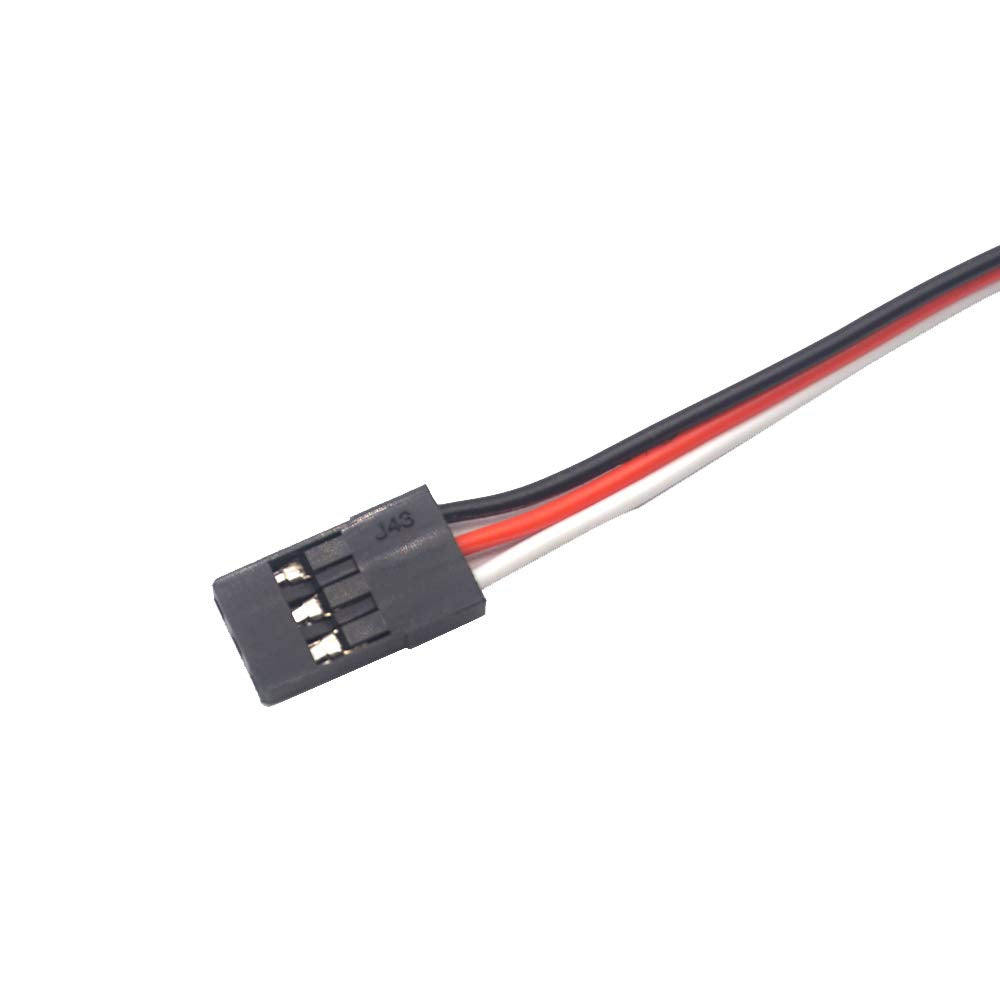

You can power it directly from your receiver or ESC, as long as the voltage stays under 7.4V. Exceeding that can damage the LEDs or cause overheating. Using a 6V battery pack is a safe, common option. The default mode is always-on, but if your remote has a CH3 button, you can cycle through constant light, breath flash, explosion flash, and on/off.
Mounting and Installation Tips

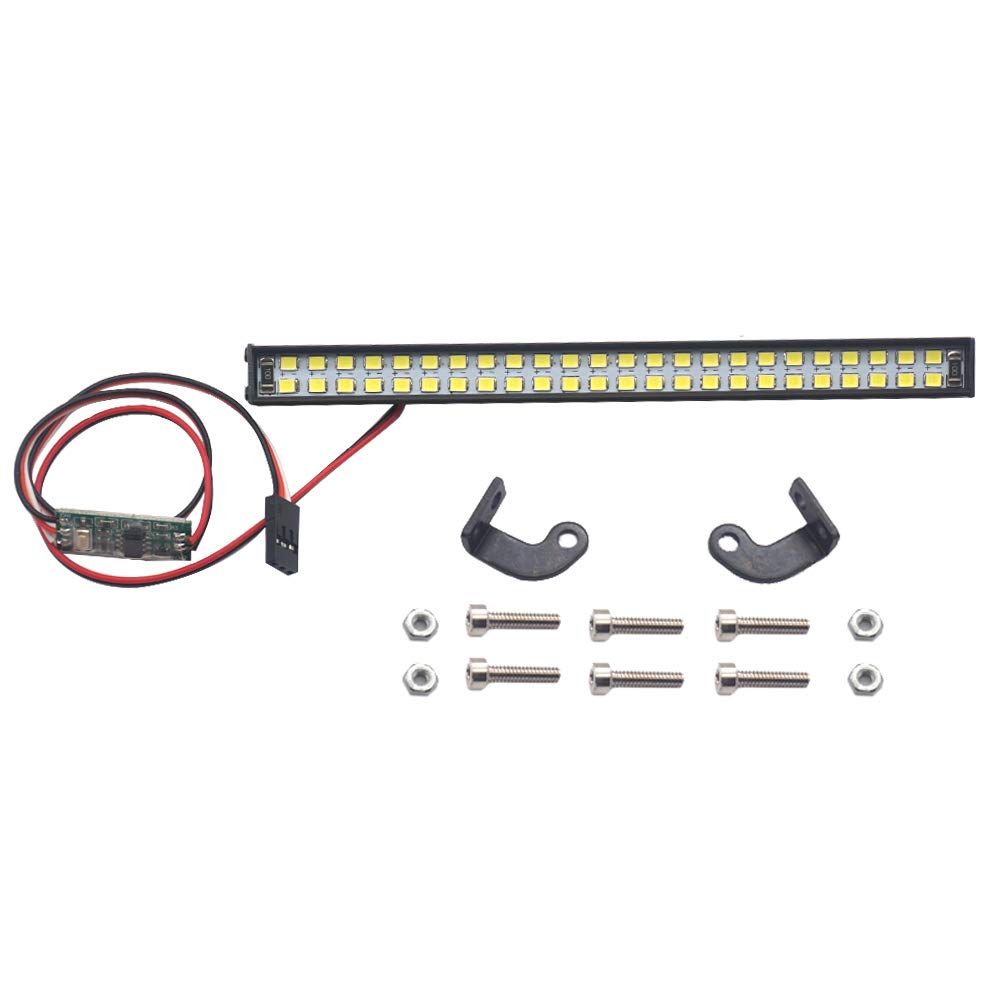

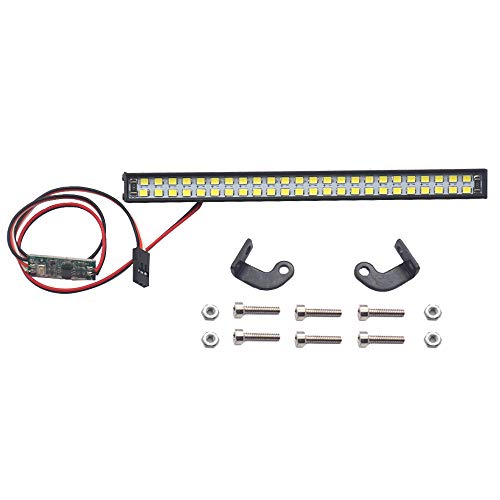

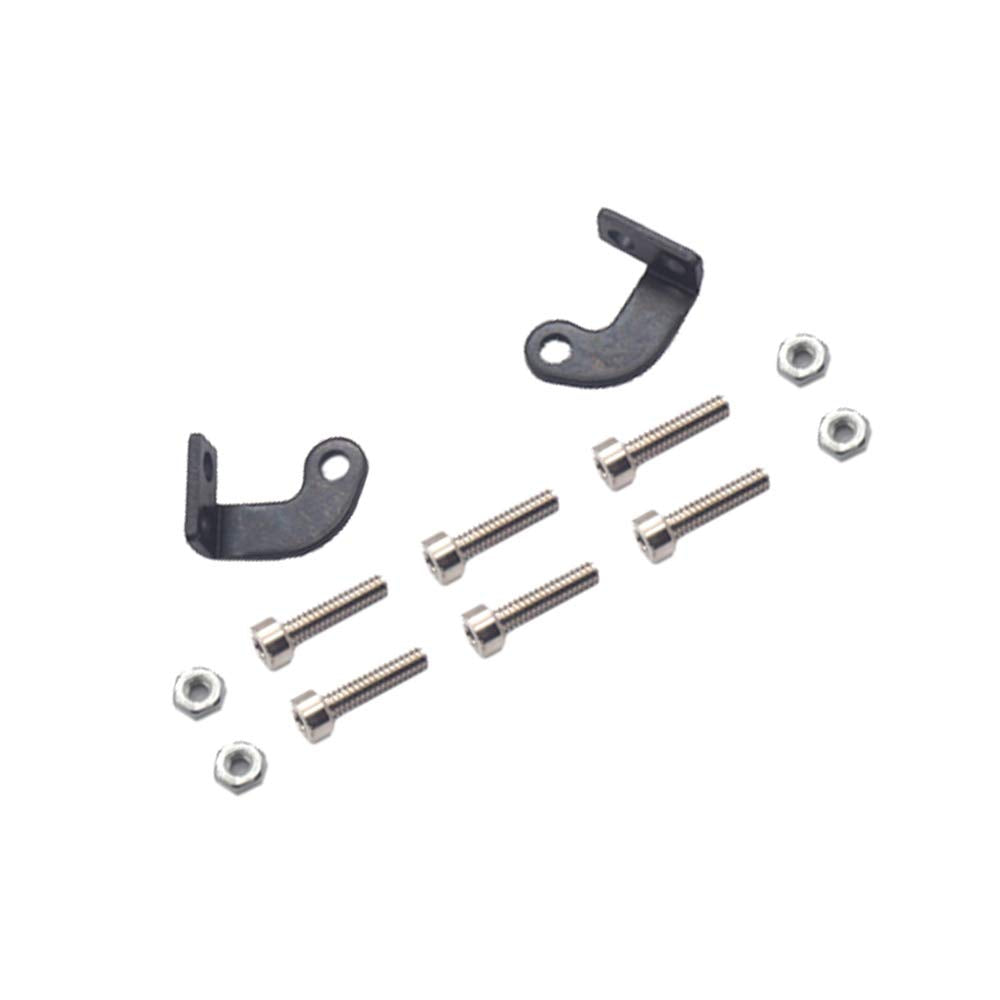

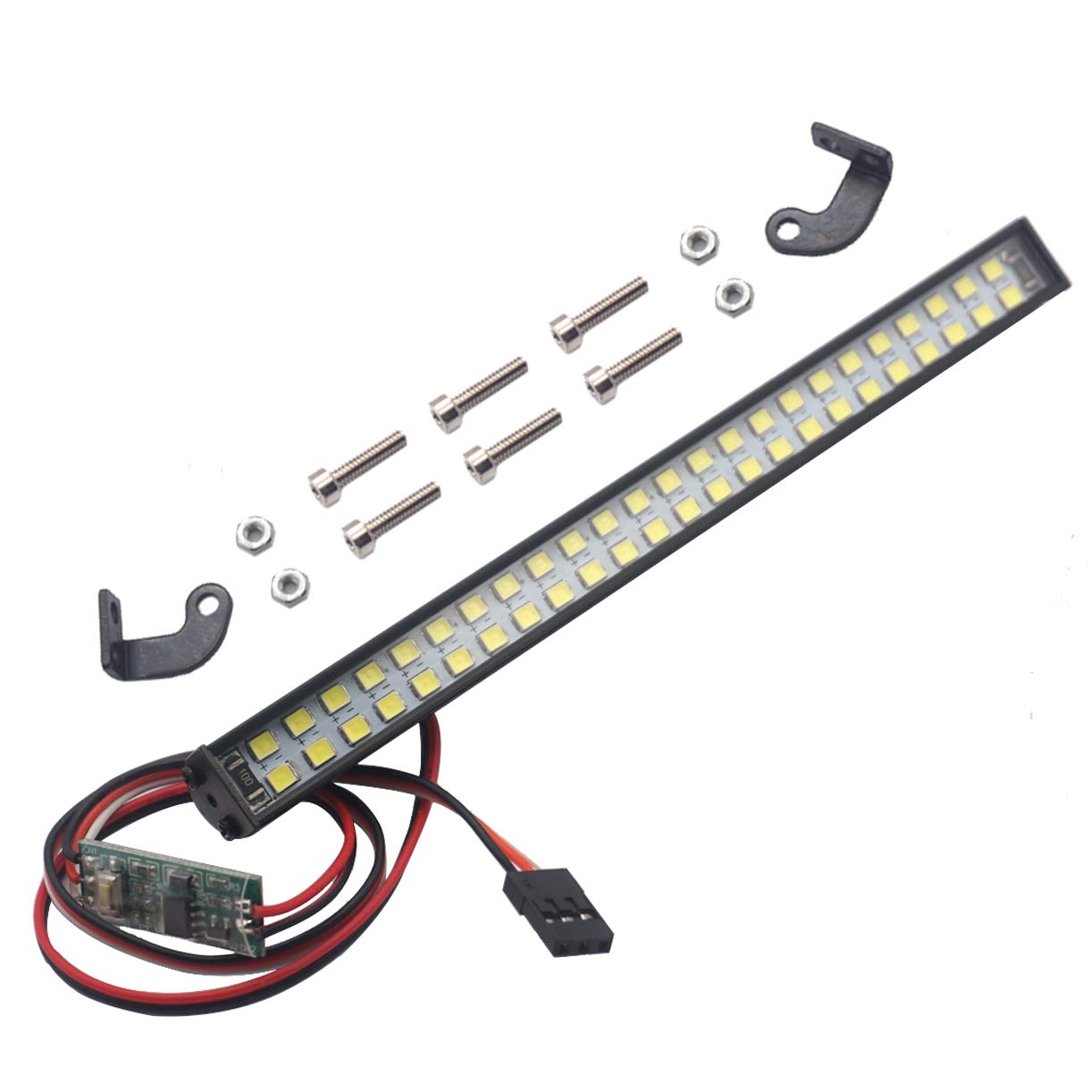

Each kit comes with the light bar, one set of L-shaped brackets, and optional Wrangler-style brackets. The metal bar is sturdy and ready to screw onto most 1/10 scale roofs. Use the hardware included – no extra parts needed for standard mounting. Make sure your receiver or ESC is off before connecting the light. Plugging it in while the controller is on might cause issues.
Frequently Asked Questions
Can I control the light modes?

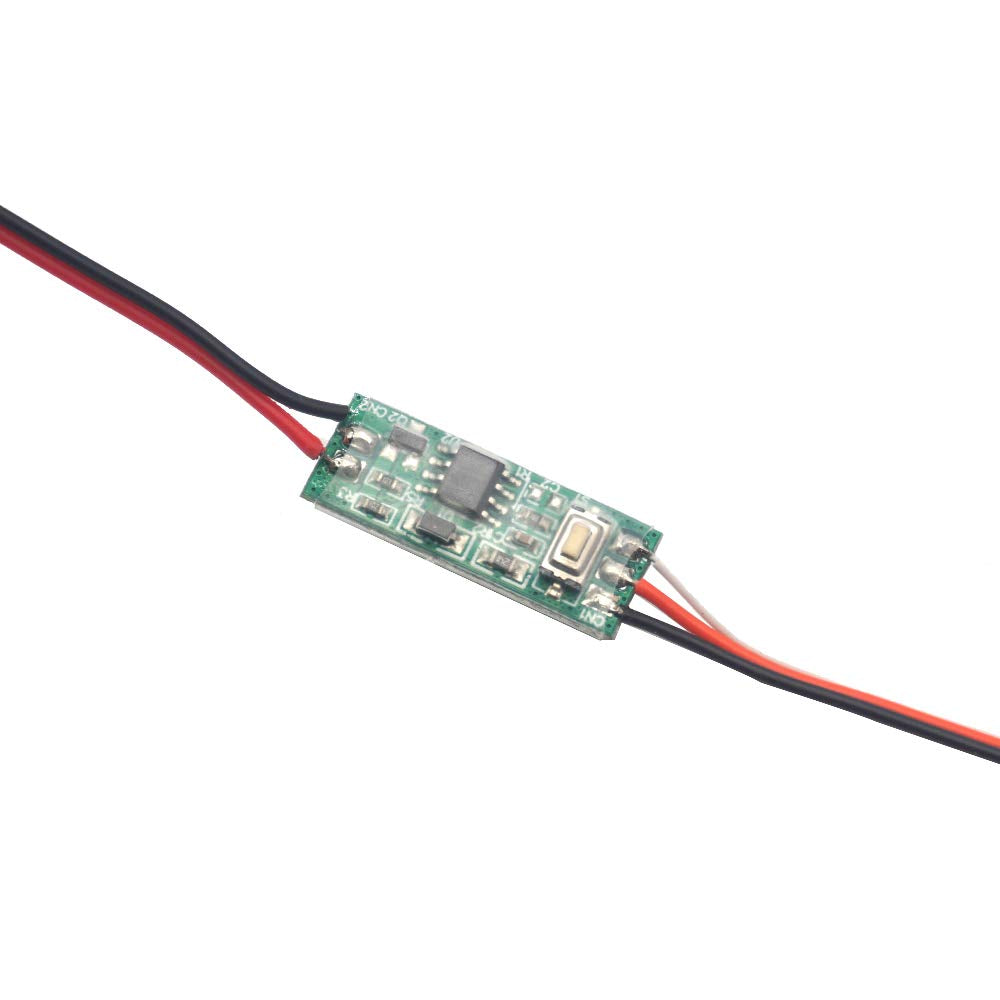

Yes, if your transmitter has a CH3 (third channel) button. Each press changes the mode: steady on, breath flash, explosion flash, or off. Without CH3, the light stays constantly on.
Will this fit a Traxxas Slash?
It fits 1/10 scale Traxxas Slash, Rustler, TRX4, and many others. The universal brackets allow mounting on most roof bars or roll cages.
What is the voltage limit?
Keep the supply between 4.8V and 7.2V for regular use. Going above 7.4V can overheat or break the LEDs.
How many LEDs are in the bar?
The bar contains 48 individual LEDs arranged in two rows for a wide, bright beam.
