QIANRENON Fixable XT90 Female Soldering Adapter – XT90E-F Panel Mount, 30A, Gold Plated, IP40 Dust Cover, 2 Pack
QIANRENON Fixable XT90 Female Soldering Adapter – XT90E-F Panel Mount, 30A, Gold Plated, IP40 Dust Cover, 2 Pack

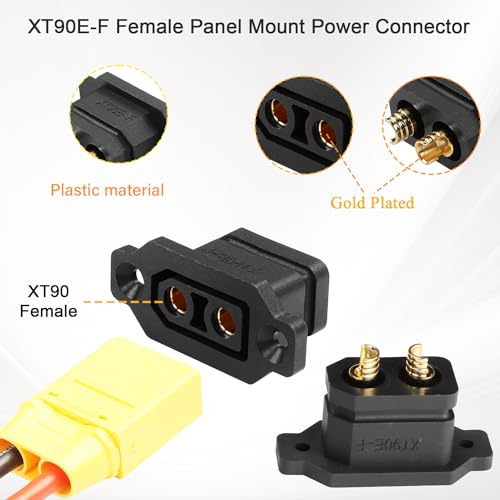

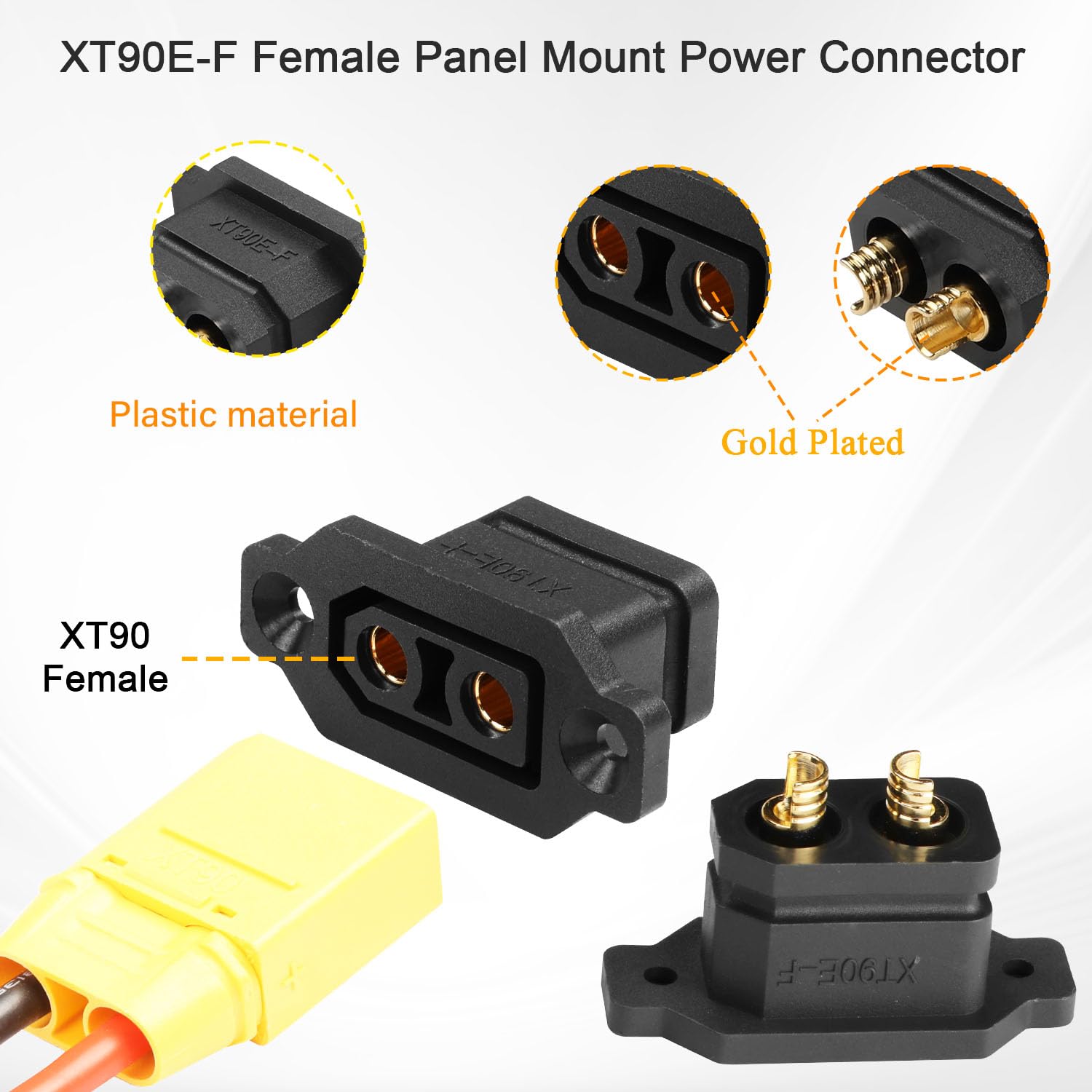

The QIANRENON Fixable XT90 Female Soldering Adapter is a panel-mount XT90E-F connector designed for high-current lithium battery applications in large RC models, drones, and electric vehicles. Gold-plated contacts handle 30A continuous (60A peak), and the included dust cover provides IP40 protection. Each pack contains two connectors, two M3 screws, and two M3 nuts for secure panel installation.
What makes this XT90E-F connector different from standard XT90 connectors?

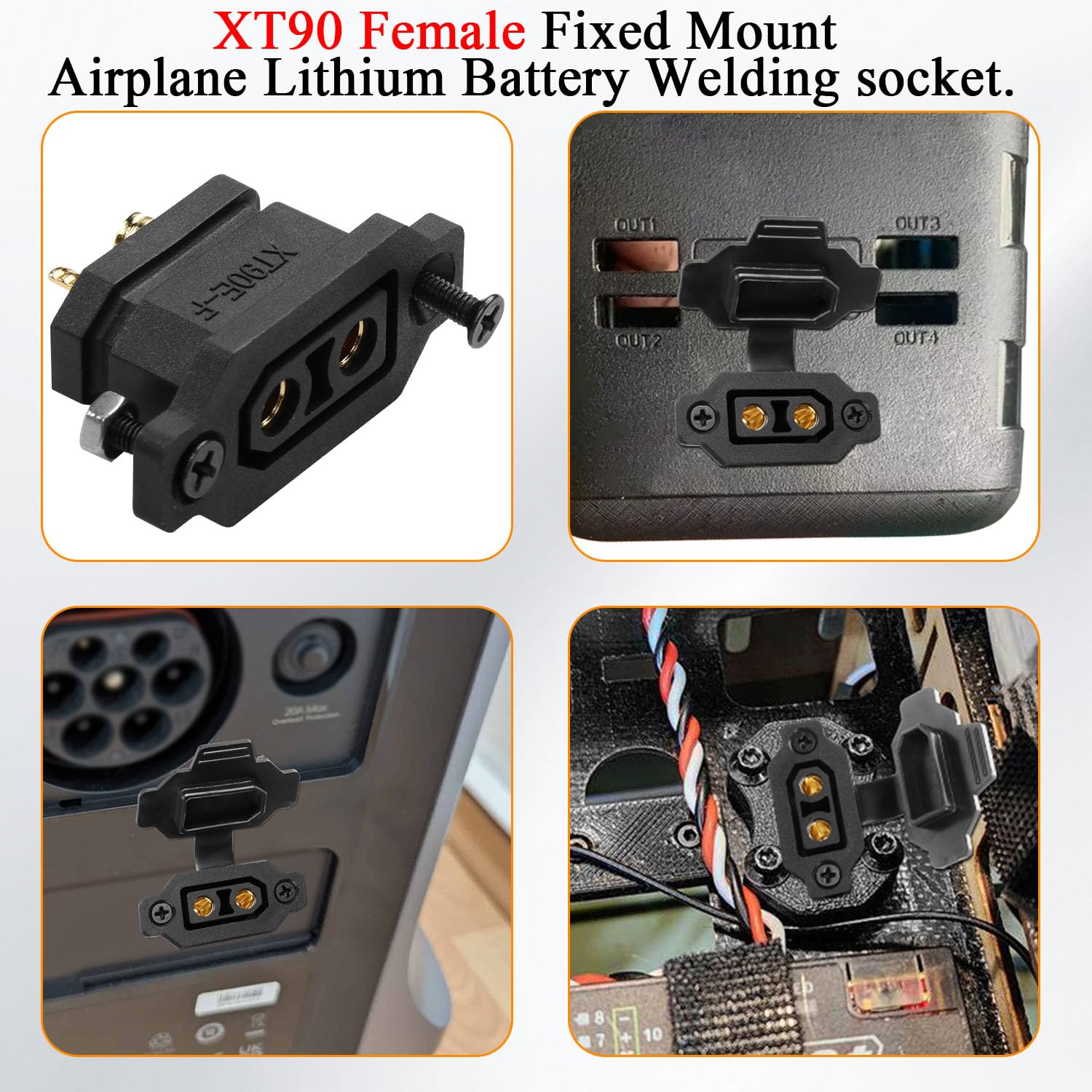

Unlike standard inline XT90 connectors, this XT90E-F variant is designed for permanent panel mounting. It features two M3 screw holes (32.4mm apart) that allow you to bolt it securely to a chassis or panel. The included dust cap seals the connector when not in use, offering IP40 protection against dust and debris. This makes it ideal for projects where the connector needs to be fixed in place, such as drone frames, RC car bodies, or battery charging stations.
How much current can it handle and what wire gauge is recommended?
This connector is rated for a continuous current of 30 amps and can handle peaks up to 60 amps, thanks to the gold-plated conductor surface. For best performance, use wire sizes between 8 AWG and 12 AWG. The solder cups have a semi-circular 180-degree flat opening that makes it easier to tin and fix wires in place before soldering.
Specifications at a glance
| Connector Type | XT90E-F (female panel mount) |
| Rated Current | 30A continuous / 60A peak |
| Wire Gauge | 8 AWG – 12 AWG (solder type) |

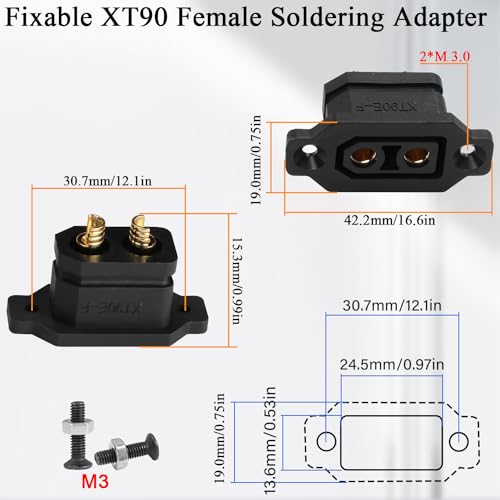

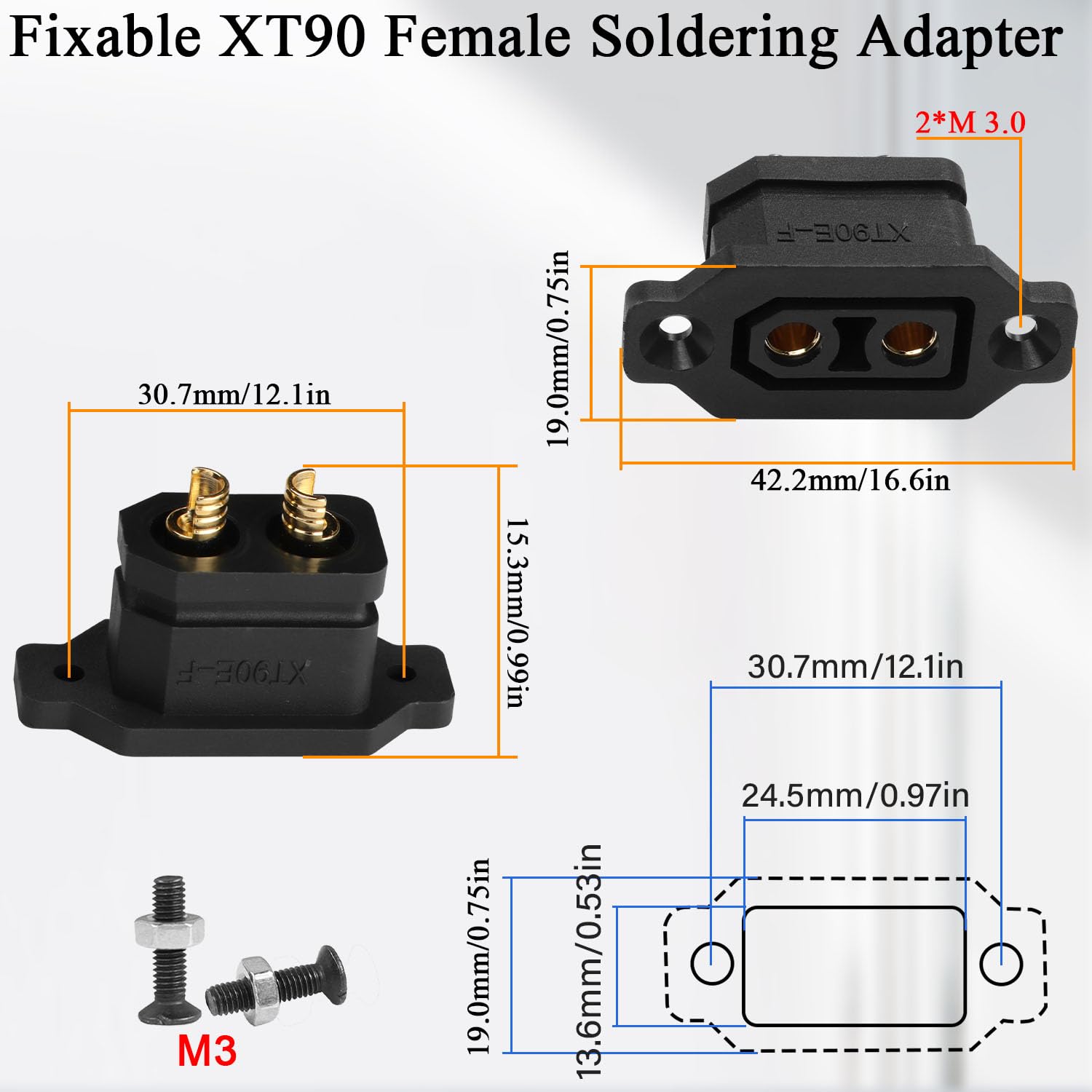

| Mounting | 2 × M3 screws, hole spacing 32.4mm |
| Protection | IP40 (dust cover included) |
| Operating Temperature | -20°C to +120°C |
| Flame Rating | UL94 V-0 |
| Housing Material | PA (black) |
| Product Dimensions | 4.25 × 3.11 × 0.59 inches |
| Weight (per pair) | 1.41 ounces |

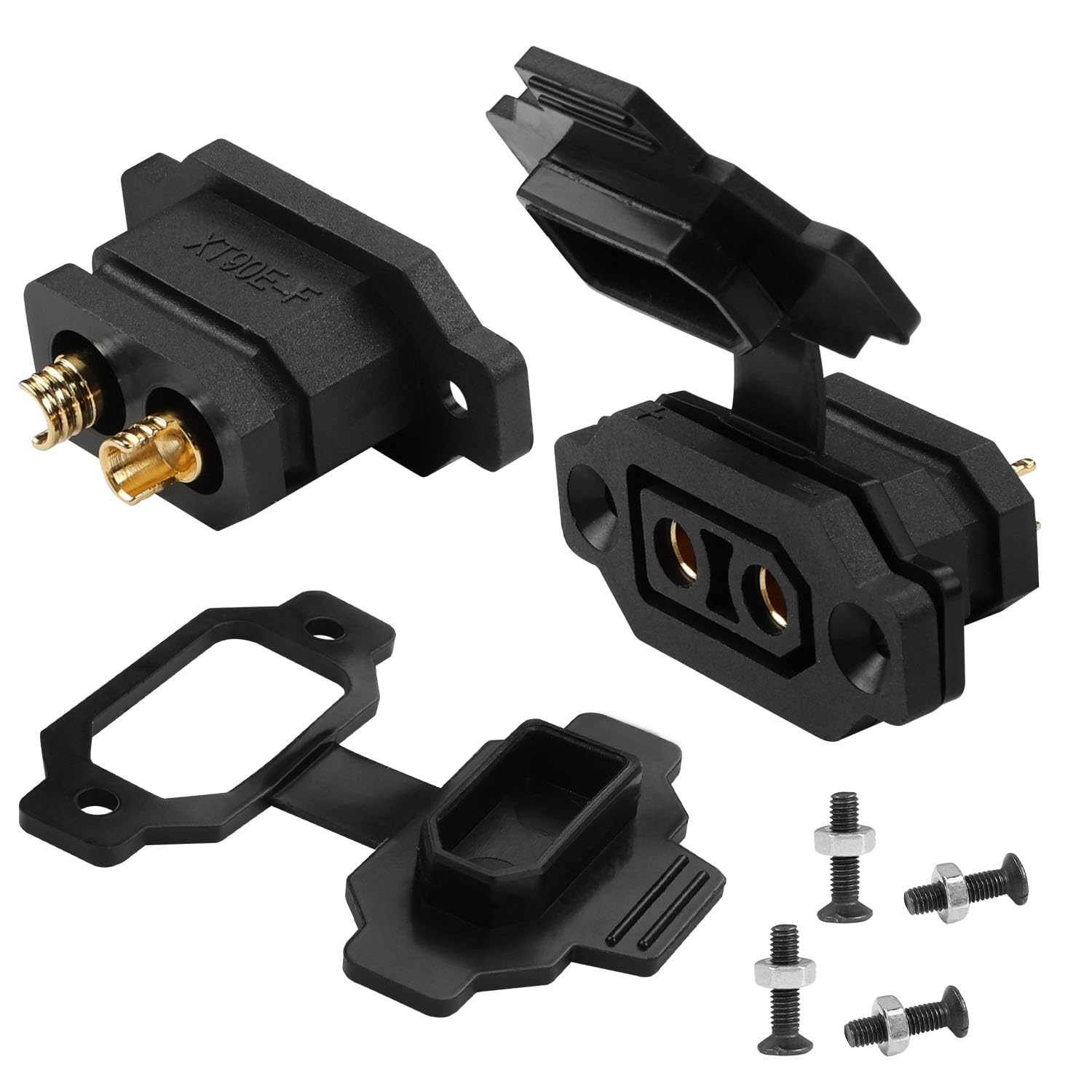

| Package Includes | 2 connectors, 2 dust covers, 2 M3 screws, 2 M3 nuts |
Frequently asked questions
Is this compatible with standard Amass XT90 male connectors?
Yes, the XT90E-F is designed to be fully compatible with all Amass XT90 male connectors (solder or bullet type).
What is the recommended wire size for soldering?
The manufacturer recommends wire sizes from 8 AWG to 12 AWG. The solder cup is shaped to hold the wire steady during soldering.
Does it come with mounting hardware?
Yes, each pack includes two M3 screws and two M3 nuts for panel mounting. You just need a screwdriver and a 32.4mm hole spacing.
What applications is this connector best suited for?

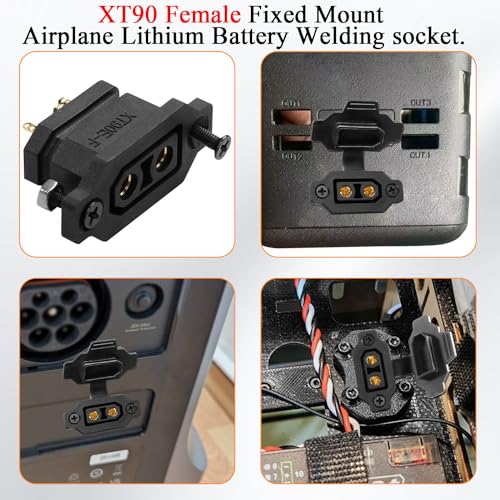

It is commonly used with large lithium polymer (LiPo) batteries in RC airplanes, drones, quadcopters, electric cars, scooters, and other high-current RC toys. It can also be used for DIY battery charging interfaces or power distribution panels.
