INJORA M1.4 Rock Lights Kit - 4 White LED Lights with Controller for 1/24 RC Crawler
INJORA M1.4 Rock Lights Kit - 4 White LED Lights with Controller for 1/24 RC Crawler

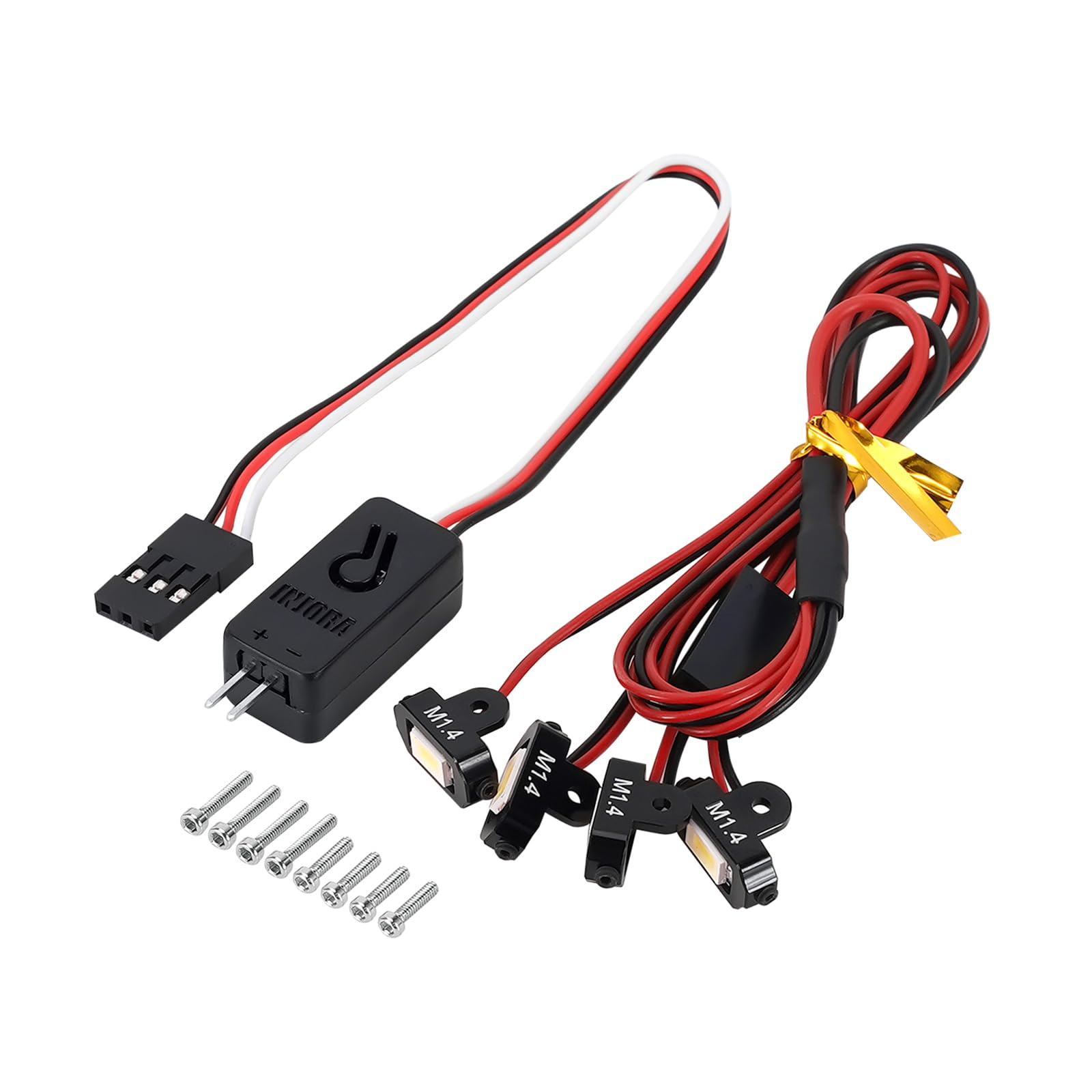

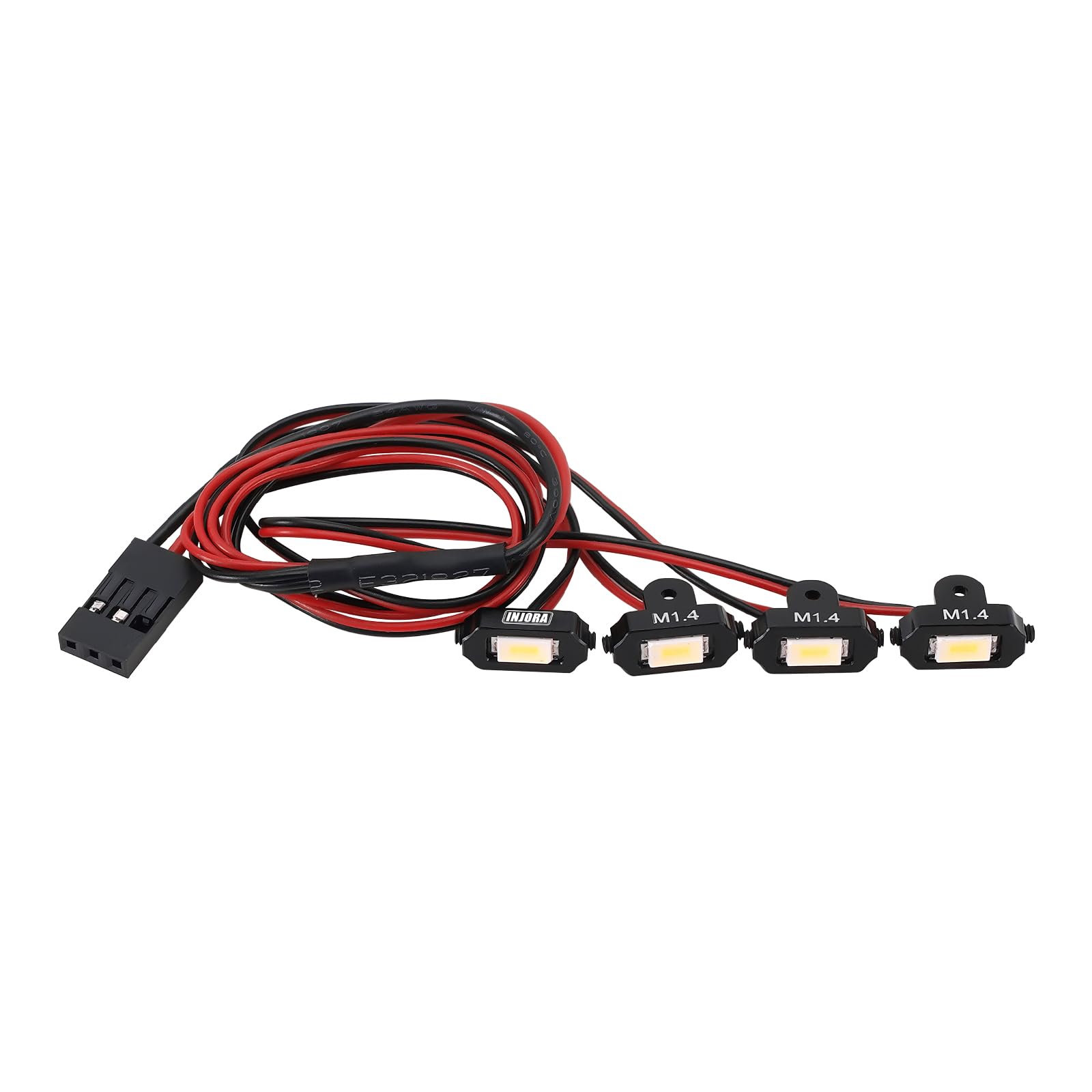

The INJORA M1.4 Rock Lights Kit is a set of four white LED lights designed for 1/24 scale RC crawlers. They offer plug-and-play installation and three lighting modes—steady, breathing, and strobe—controlled via the CH3 channel on your transmitter. The kit includes aluminum light mounts and M1.4 screws, with a wire length of about 245mm (9.65in). Ideal for adding ground illumination during low-light crawling or indoor courses.
What lighting modes are included?
Three modes: steady on (constant light), breathing (gradual fade in and out), and strobe (rapid flashing). You can cycle through them using a three-position switch on your transmitter.
How do you control these lights?

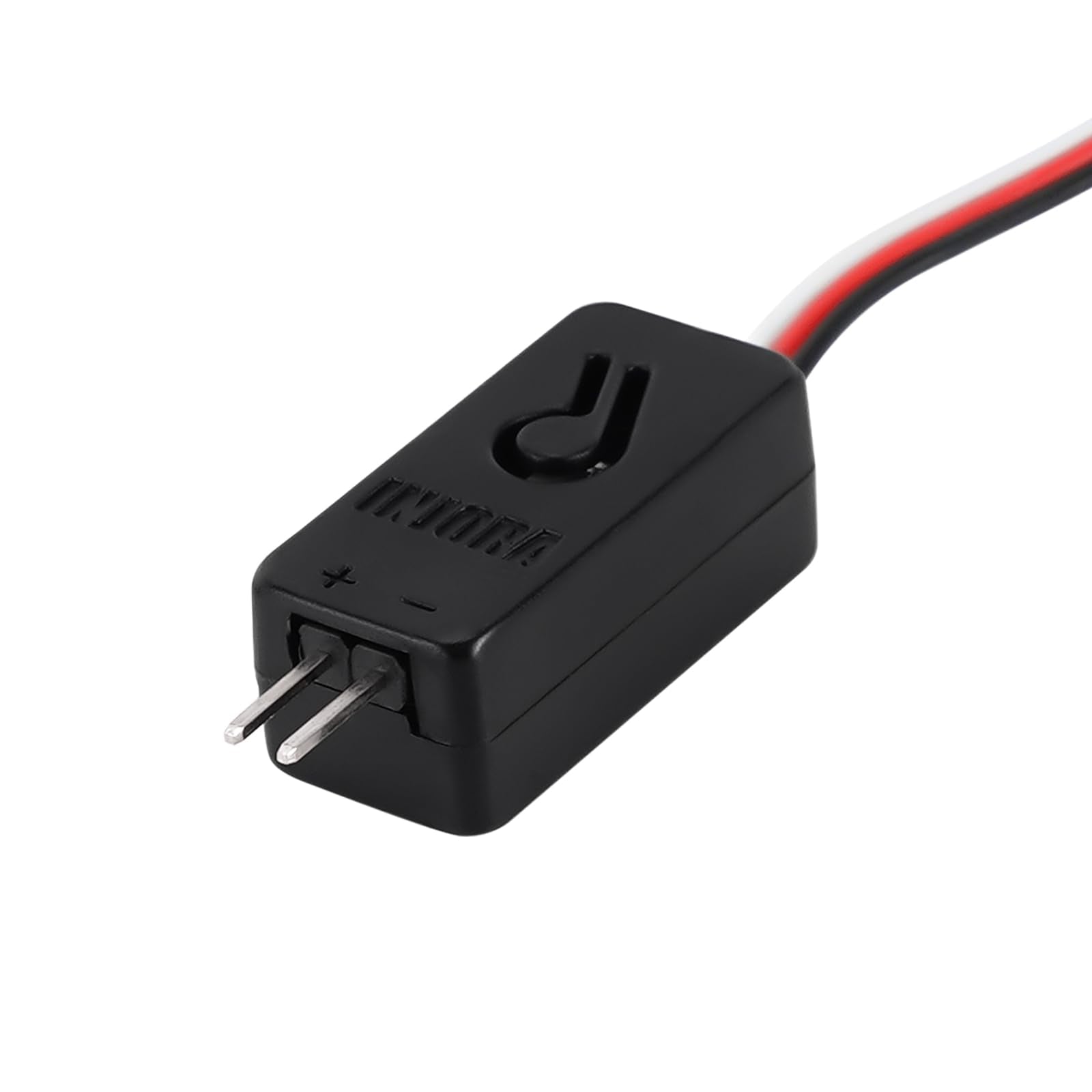

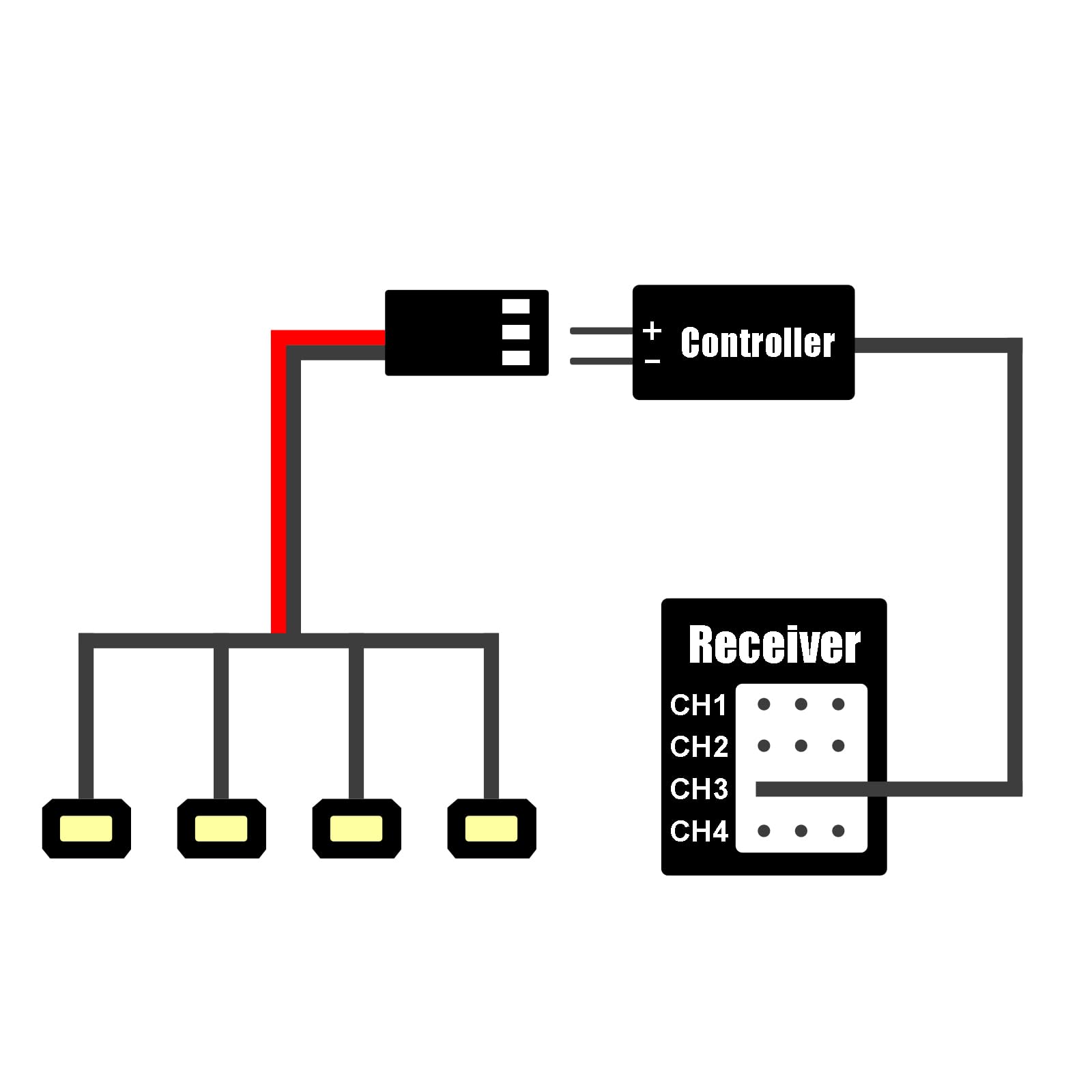

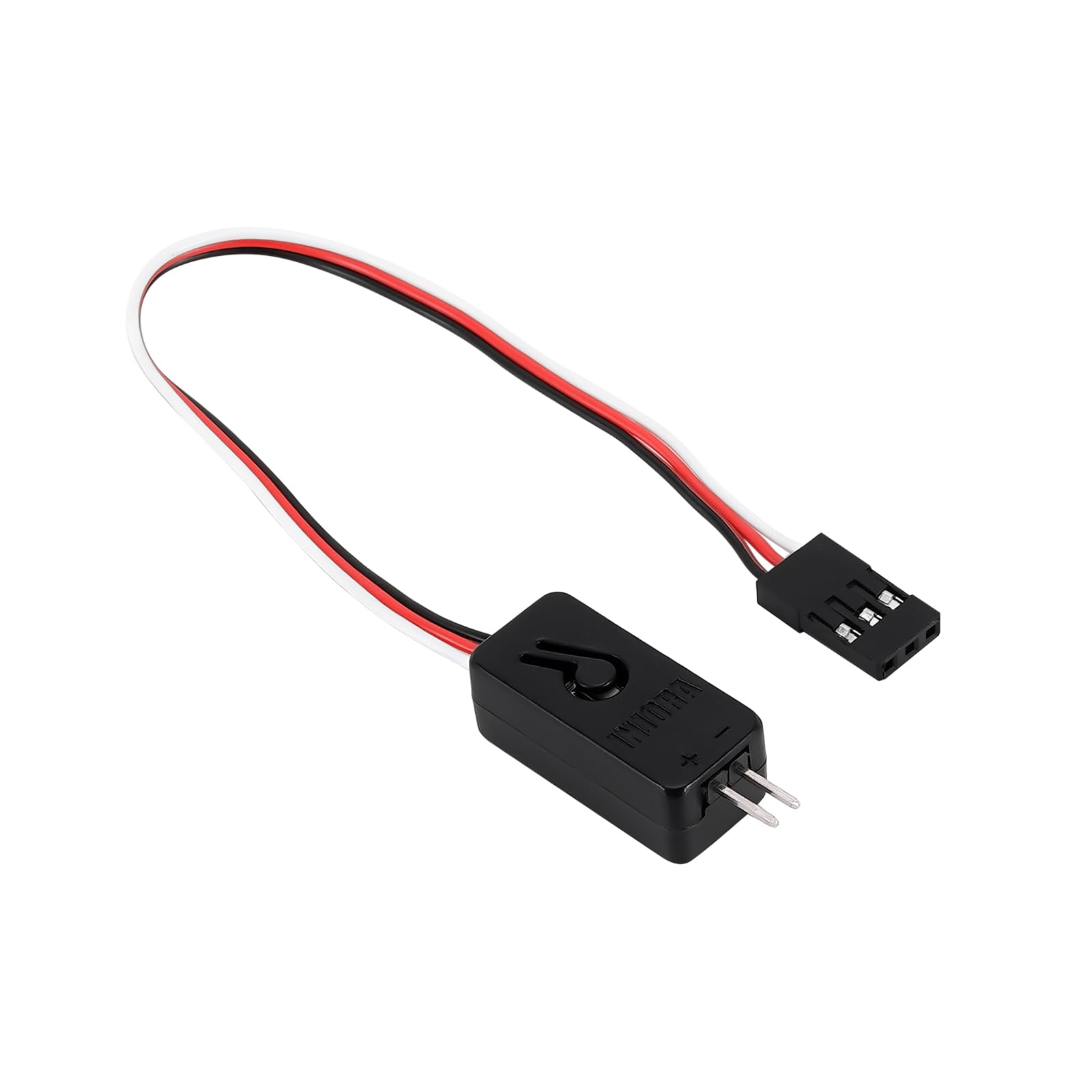

Connect the controller to the CH3 port on your receiver. With a three-position switch on your transmitter, you can toggle between the three modes. Make sure your receiver outputs between 5V and 7.4V—this covers standard 2S LiPo (7.4V) and BEC outputs.
Specifications at a glance
| Light Mounts Material | Aluminum |
| Operating Voltage | 5-7.4V |
| Light Color | White |
| Screw Type | M1.4 |
| Wire Length | ~245mm (9.65in) |
| Number of Lights | 4 |
| Compatibility | 1/24 scale rock crawlers with M1.4 mounting points |
Are these lights easy to install?

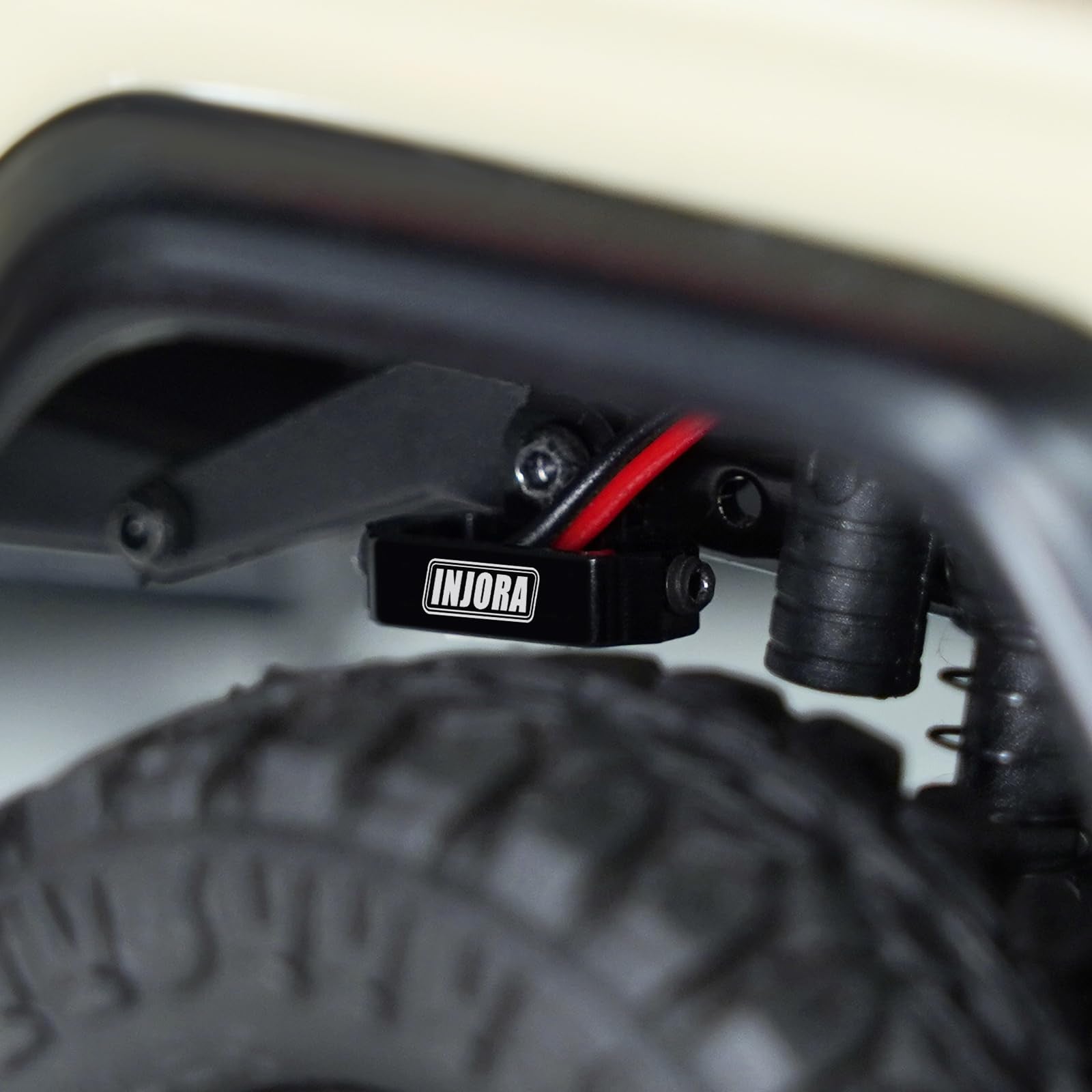

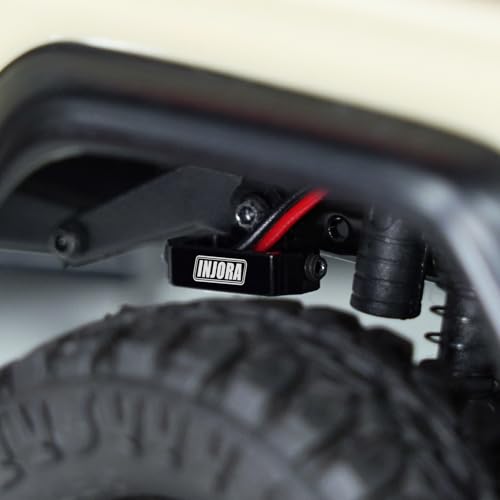

Yes, simply plug the controller into your receiver and mount the lights using the included M1.4 screws. The wires are pre-soldered, so no soldering is needed. The aluminum mounts are lightweight and fit standard 1/24 rock light brackets.
Common questions about this rock light kit
What voltage do the lights support?
They operate from 5V to 7.4V, making them compatible with most RC receiver outputs, including 2S LiPo batteries (7.4V).
Can I use these on a 1/10 scale crawler?
These lights are specifically designed for 1/24 scale with M1.4 screws. They may not fit larger scales without custom mounting.
Do I need a special transmitter?
You need a transmitter with a three-position switch assigned to CH3 to access all three modes. Without it, the lights may only default to one mode.
What is the wire length for each light?
The wires are approximately 245mm (9.65in) long, which is enough to route through most 1/24 chassis.

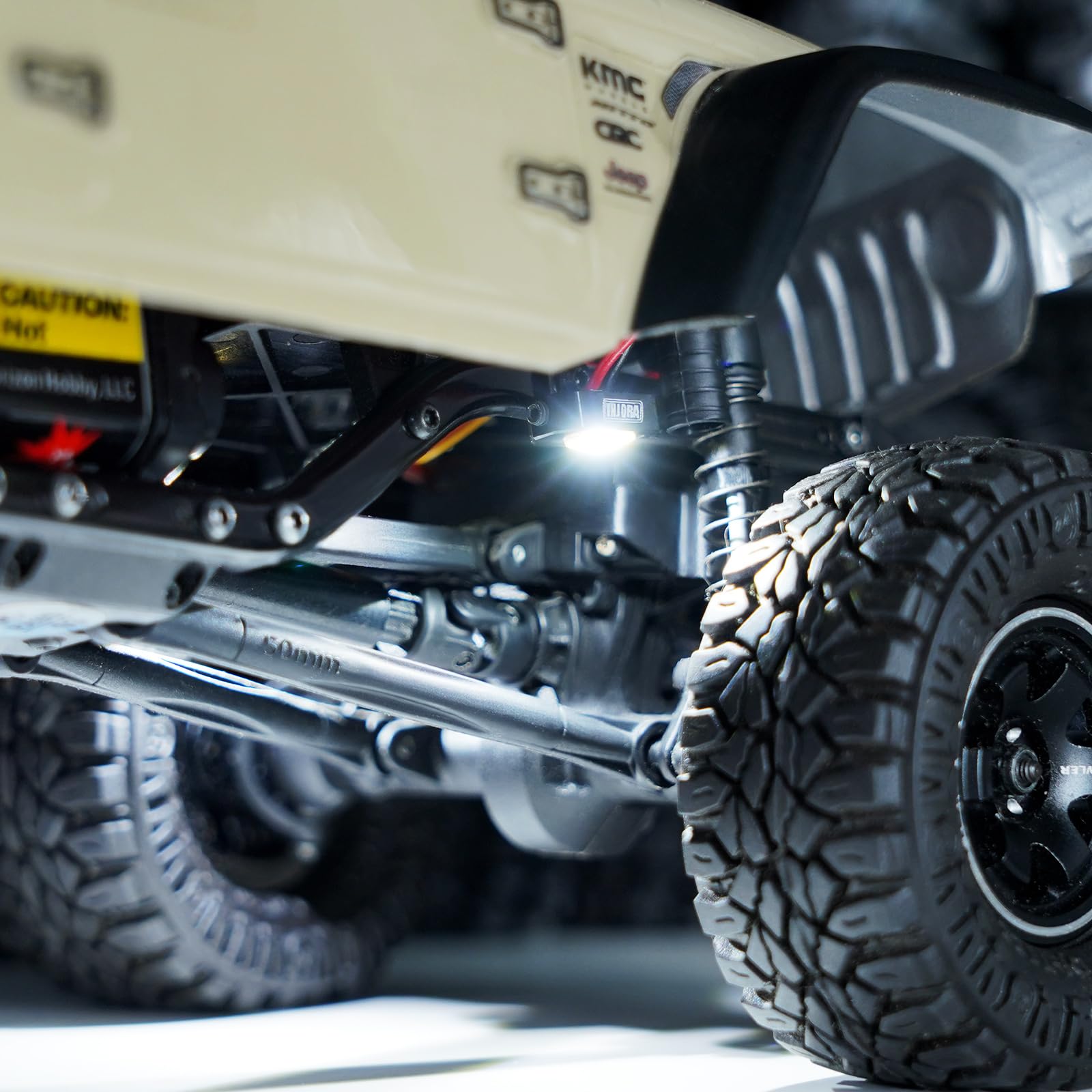

This kit enhances your crawler's appearance and visibility in low-light conditions. The aluminum mounts are durable, and the white LEDs provide bright ground illumination. Whether you're crawling at night or indoors, these lights add realism and functionality.
