Easyget 6-Pack 30mm Arcade Push Buttons (Blue) - HAPP Style with Microswitches for MAME/JAMMA/Raspberry Pi
Easyget 6-Pack 30mm Arcade Push Buttons (Blue) - HAPP Style with Microswitches for MAME/JAMMA/Raspberry Pi

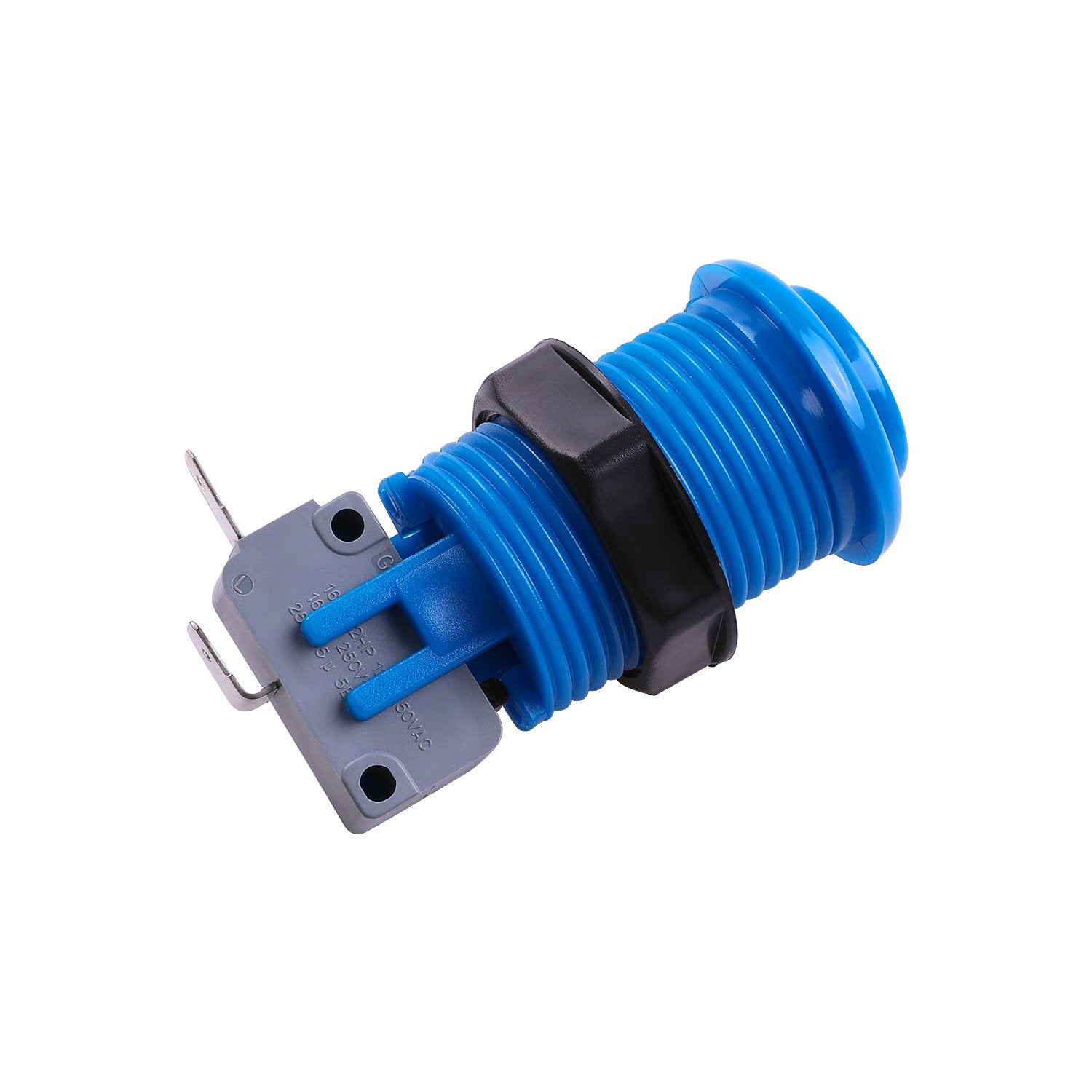

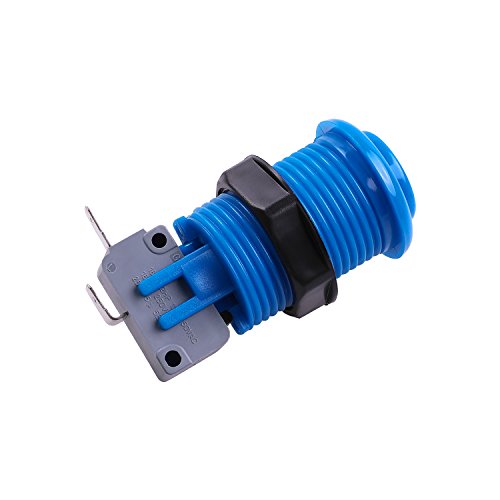

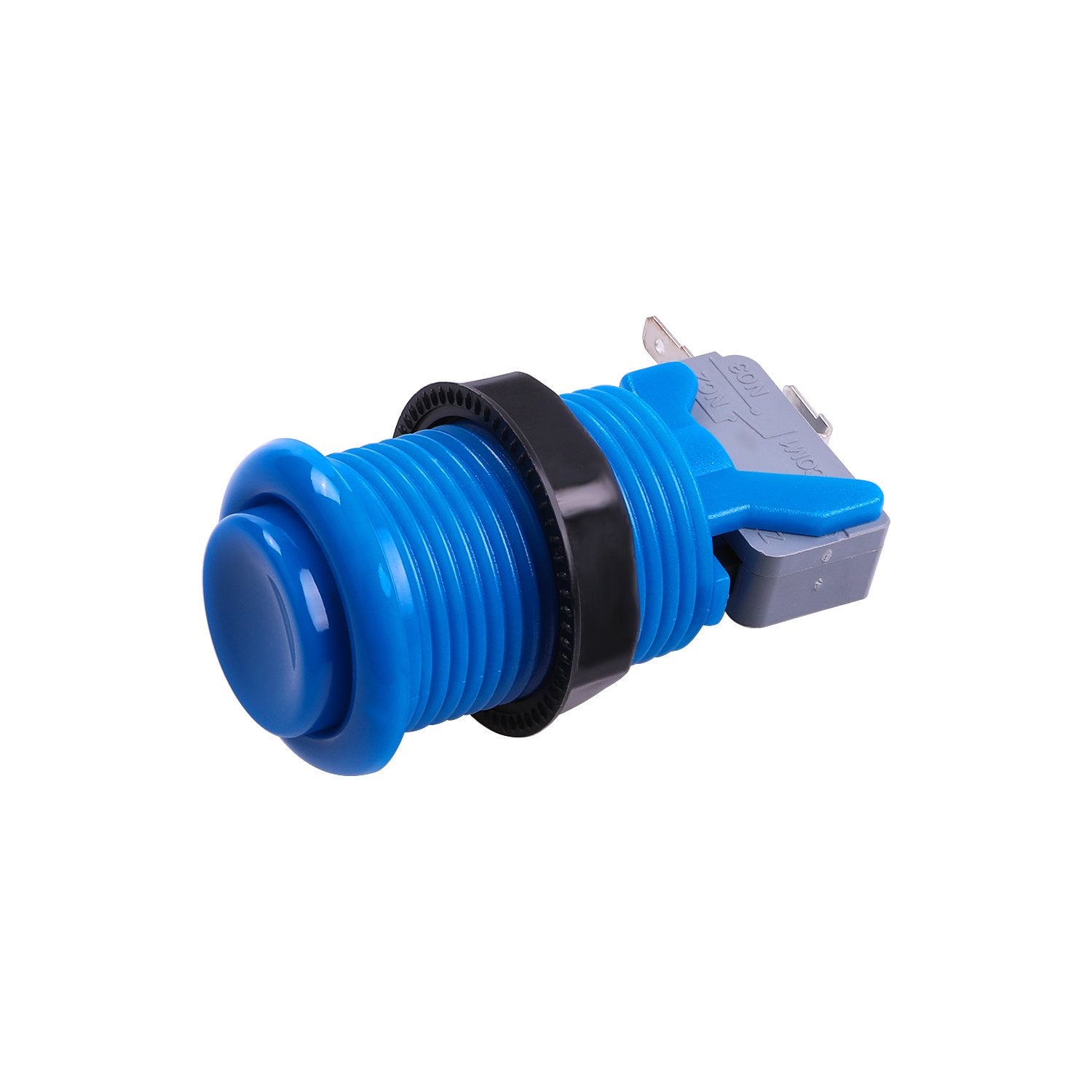

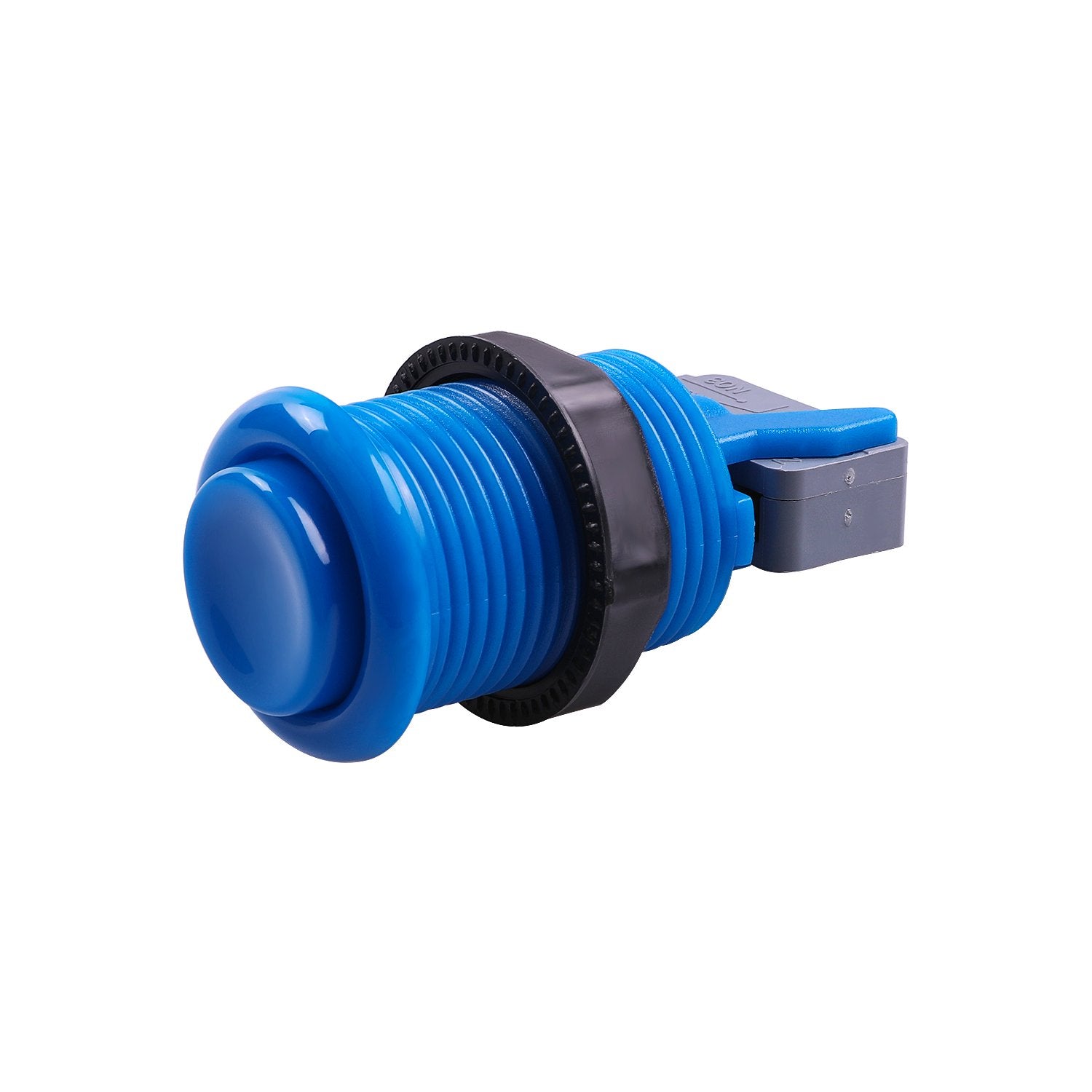

This 6-piece set of Easyget arcade push buttons delivers a classic concave plunger feel with a 30mm diameter, built for DIY arcade, MAME, JAMMA, and Raspberry Pi control panels. Each button includes a vertical microswitch rated for 10 million cycles and .187-inch terminals for straightforward wiring. The blue buttons mount into 28mm to 32mm holes and come with a fixing ring for secure installation.
What hole size do these arcade buttons require?
These buttons are designed for mounting holes between 28mm and 32mm in diameter. They fit snugly into standard arcade control panels, whether made of wood or metal. The long thread on the button housing accommodates panels up to about 3/4 inch thick, making them versatile for many DIY projects.
Button details and compatibility
| Button diameter | 30mm |
| Mounting hole range | 28mm – 32mm |
| Microswitch type | Vertical attachment, .187” (4.8mm) terminals |
| Microswitch life | Tested to 10,000,000 cycles |
| Plunger design | Concave (classic arcade style) |
| Color | Blue |
| Quantity | 6 buttons |
| Includes | Fixing ring and microswitch per button |
How do these buttons connect to a JAMMA or MAME system?
Each button comes with a microswitch that has vertical .187-inch quick-connect terminals. You simply attach your wiring harness to these terminals, then connect to your encoder or JAMMA harness. The microswitch is already mounted and adjusted, so installation takes minutes. No soldering is required if you use compatible connectors.
Are these buttons suitable for a Raspberry Pi arcade project?
Yes, they work well with Raspberry Pi setups. Many DIY arcade kits pair these buttons with a USB encoder to create a standalone game controller. The standard 30mm size and microswitch action are identical to what you’d find in commercial arcade machines, so they feel authentic for retro gaming.

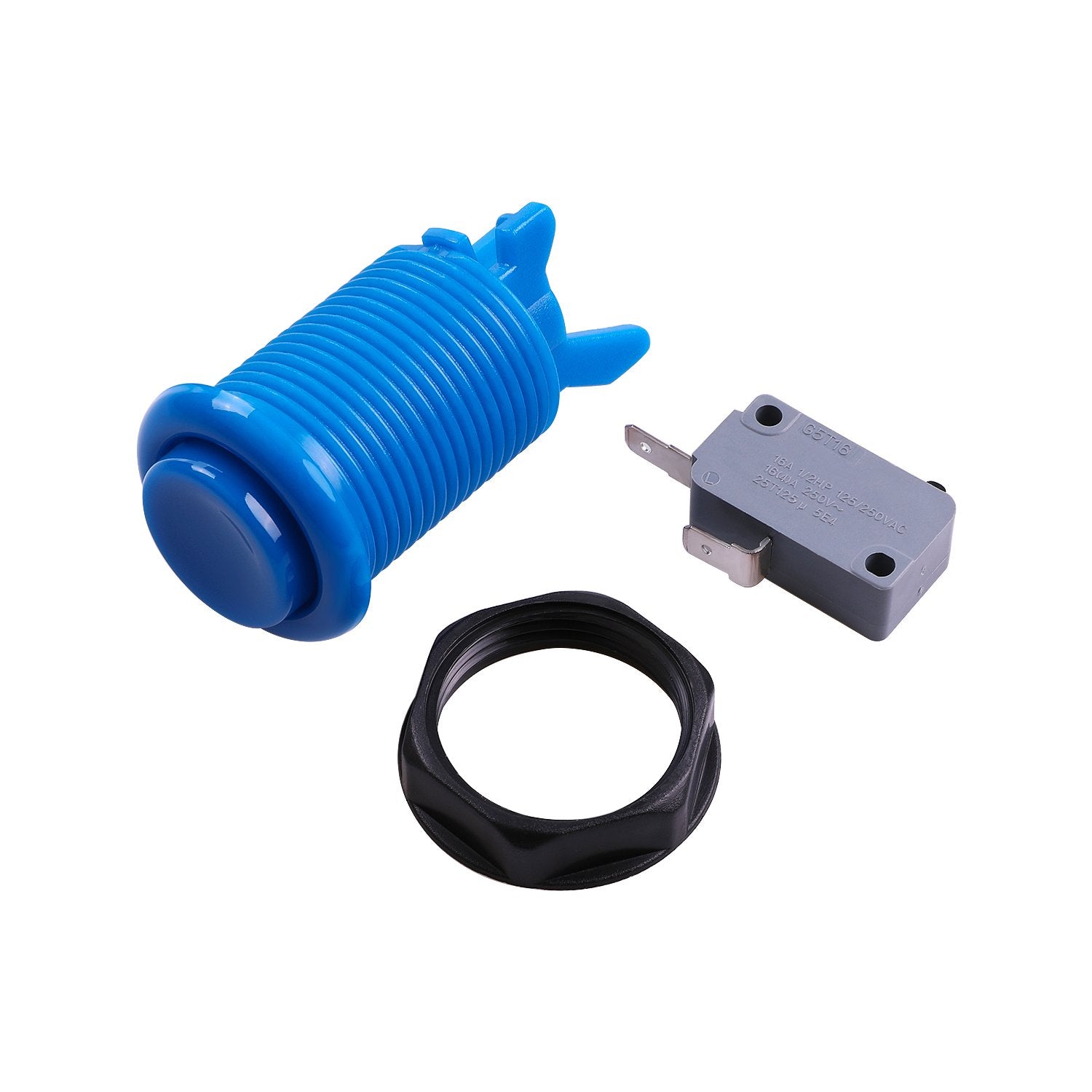

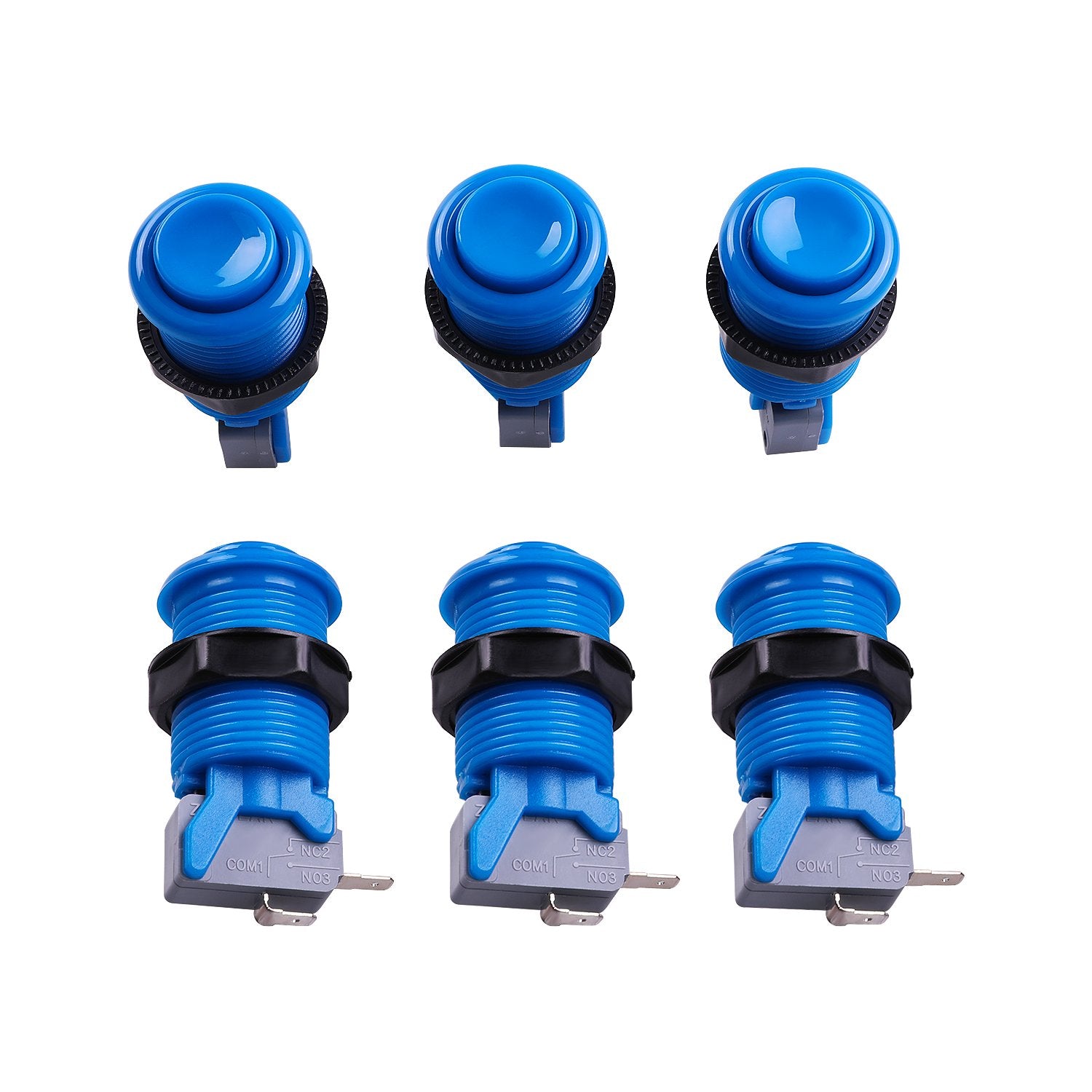

What comes in the package?
You receive six blue arcade push buttons, each with one microswitch and one fixing ring. The buttons are pre-assembled; just insert them into your panel’s holes, thread the fixing ring on the back, and tighten. The microswitch clips onto the button housing and can be oriented as needed.
Common questions answered
Can these mount in metal panels? Yes, the long thread design works with both wood and metal panels up to about 3/4 inch thick.
What is the lifespan of the microswitch? Each microswitch is certified for 10 million actuations, making them durable for heavy use.
Do they fit 3/4” wood panels? They are ideal for 3/4” wood control panels, as noted in the product specifications.
